Ifm | SKU:
IF-MVQ201-E

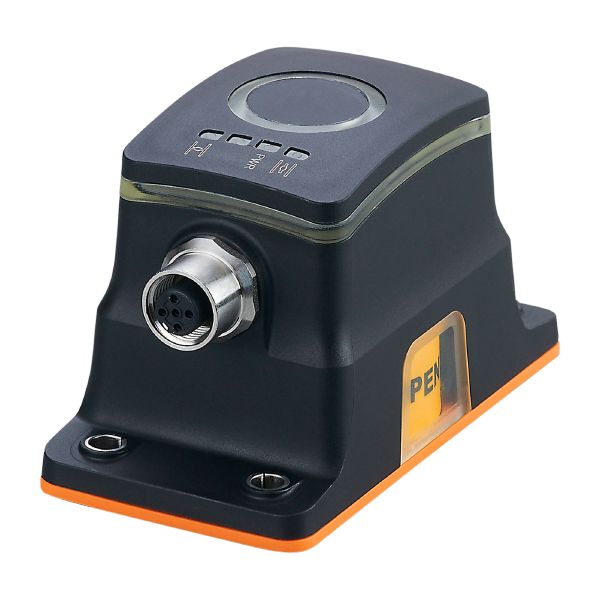

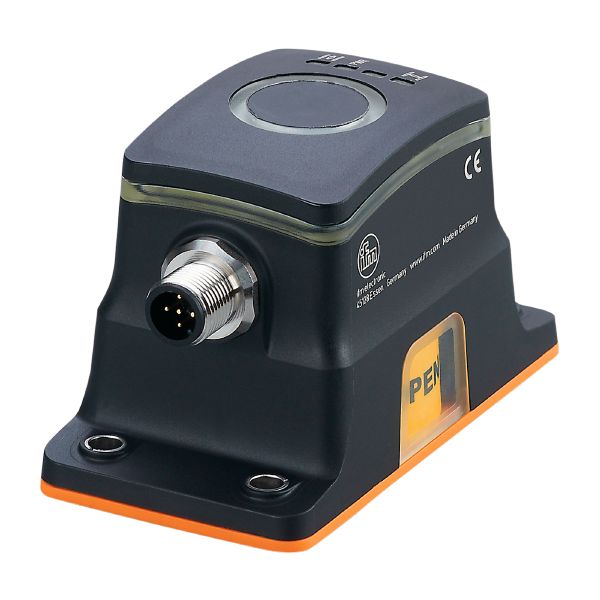

Ifm MVQ201 Position Sensor For Valve Actuators
$362.22 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm MVQ201 Position Sensor For Valve Actuators is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm MVQ201 Position Sensor For Valve Actuators
$362.22 USD
Unit price
/
Unavailable
Product characteristics
| Communication interface | IO-Link |
|---|---|
| Housing | rectangular |
| Dimensions [mm] | 95 x 50 x 57 |
Switching outputs
| Electrical design | PNP |
|---|---|
| Output function | 2 x normally open / normally closed; (selectable) |
Solenoid valve connection (SV1 / SV2)
| Output function | 2 x normally open |
|---|
Application
| Principle of operation | magnetic |
|---|---|
| Application | angle of rotation detection absolute; actuator control |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 40 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 300 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 1; Number of digital outputs: 2 |
|---|
Inputs
| Number of digital inputs | 1 |
|---|
Outputs
| Number of digital outputs | 2 |
|---|
Switching outputs
| Electrical design | PNP |
|---|---|
| Output function | 2 x normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Max. current load per output [mA] | 100 |
| Short-circuit protection | yes |
| Overload protection | yes |
Solenoid valve connection (SV1 / SV2)
| Output function | 2 x normally open |
|---|---|
| Max. current load per output [mA] | 200 |
| Short-circuit protection | yes |
| Overload protection | yes |
Monitoring range
| Monitoring range [°] | 360 |
|---|
Accuracy / deviations
Rotational angle detection
| Accuracy [°] | ± 1 |
|---|---|
| Resolution [°] | 0.1 |
| Temperature drift [°/K] | 0,02 |
| Repeatability [°] | 0,1 |
Switch point indication
| Tolerance [°] | 0.1...15; (Factory setting 10) |
|---|---|
| Hysteresis [°] | 0.1...5; (Factory setting 3) |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 CDV | ||||
| Profiles | Smart Sensor: Device Identification; Device Diagnosis; Device Teach Channel; Binary Data Channel; Process Data Variable; Blob; Measurement Data Channel | ||||
| SIO mode | yes | ||||
| Required master port class | A | ||||
| Min. process cycle time [ms] | 4 | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 65; IP 67; (Target puck area dust-protected) |
Tests / approvals
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Vibration resistance |
|
||||||||||
| Shock resistance |
|
||||||||||
| MTTF [years] | 363 | ||||||||||
| Embedded software included | yes | ||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 192 |
|---|---|
| Housing | rectangular |
| Dimensions [mm] | 95 x 50 x 57 |
| Material | housing, target puck: PA; plug: stainless steel (316L / 1.4404) |
| Tightening torque [Nm] | target puck: 1,2; housing: 3,0; housing on plastic mounting plate: 1,5 |
Displays / operating elements
| Display |
|
|---|
