Ifm | SKU:
IF-MR0122-E

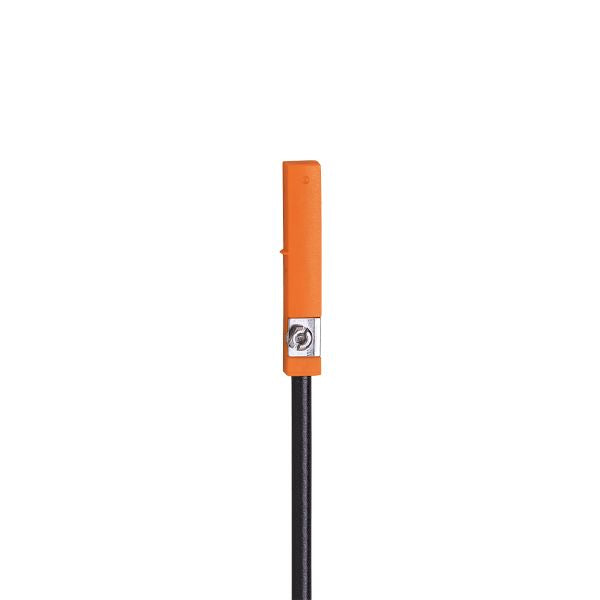

Ifm MR0122 T-Slot Cylinder Sensor With Reed Contact
$55.56 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm MR0122 T-Slot Cylinder Sensor With Reed Contact is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm MR0122 T-Slot Cylinder Sensor With Reed Contact
$55.56 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Dimensions [mm] | 30.5 x 5 x 6.5 |
Electrical data
| Operating voltage [V] | 5...50 AC/DC; (External protective circuit for inductive load (valve, contactor, etc.) necessary. ; cULus - Class 2 source required) |
|---|---|
| Protection class | III |
| Reverse polarity protection | yes |
| Reverse polarity protection | no |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 1 |
| Max. voltage drop switching output AC [V] | 1 |
| Permanent current rating of switching output AC [mA] | 350 |
| Permanent current rating of switching output DC [mA] | 500 |
| Switching frequency AC [Hz] | 1000 |
| Switching frequency DC [Hz] | 1000 |
| Max. switching power [W] | 10 |
| Short-circuit protection | no |
| Short-circuit proof | no |
| Overload protection | no |
Monitoring range
| Magnetic sensitivity [mT] | 2.1 |
|---|---|
| Travel speed [m/s] | 10 |
Accuracy / deviations
| Hysteresis [mm] | 1 |
|---|---|
| Repeatability [mm] | < 0.2 |
Reaction times
| Max. fall time [ms] | 0.1 |
|---|---|
| Max. make time incl. bounce [ms] | 0.6 |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 20385 | ||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 28.8 |
|---|---|
| Mounting | flush mountable |
| Cylinder type | T-slot cylinders |
| Dimensions [mm] | 30.5 x 5 x 6.5 |
| Material | PA; Fastening clamp: stainless steel |
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 0,75 A; fast acting; DC operation; ≤ 0,6 A; fast acting; AC operation |
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 2 m, PUR; 3 x 0.14 mm² |
|---|
