Ifm | SKU:
IF-MK5311-E

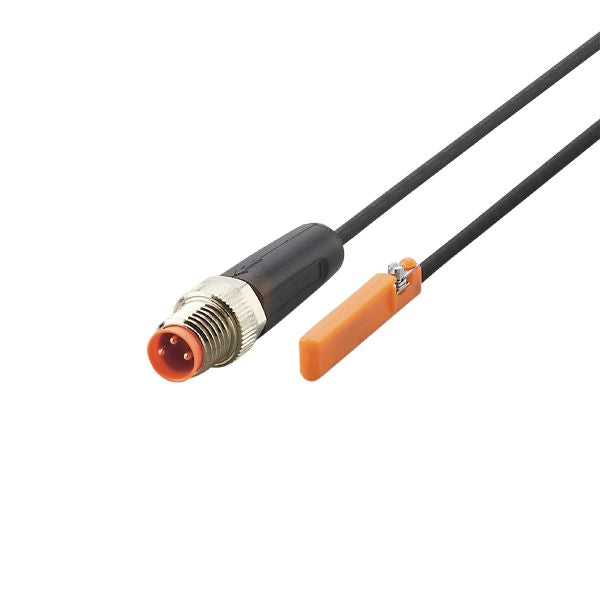

Ifm MK5311 Cylinder Sensor With Gmr Cell
$79.44 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm MK5311 Cylinder Sensor With Gmr Cell is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm MK5311 Cylinder Sensor With Gmr Cell
$79.44 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Dimensions [mm] | 26.1 x 2.8 x 5.5 |
Electrical data
| Operating voltage [V] | 10...30 DC; (cULus - Class 2 source required) |
|---|---|
| Current consumption [mA] | < 10 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 30 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 10000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Magnetic sensitivity [mT] | 2.8 |
|---|---|
| Travel speed [m/s] | > 10 |
Accuracy / deviations
| Hysteresis [mm] | 1.5 |
|---|---|
| Repeatability [mm] | < 0.2 |
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 3731 | ||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 12.3 |
|---|---|
| Mounting | flush mountable |
| Cylinder type | C-slot cylinders |
| Dimensions [mm] | 26.1 x 2.8 x 5.5 |
| Material | housing: PA; Fastening clamp: stainless steel |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Cable: 0.3 m, PUR |
|---|---|
| Connection | Connector: 1 x M8; coding: A; Locking: Knurled nut, rotatable |
