Ifm | SKU:
IF-MK502A-E

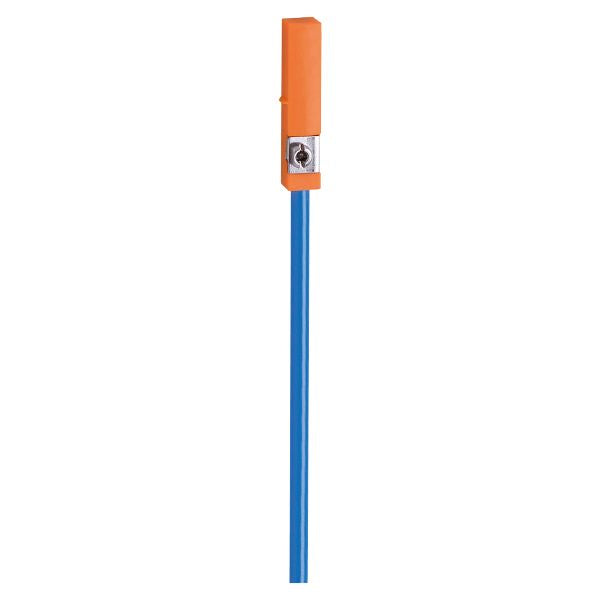

Ifm MK502A T-Slot Cylinder Sensor
$89.44 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm MK502A T-Slot Cylinder Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm MK502A T-Slot Cylinder Sensor
$89.44 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | NAMUR |
|---|---|
| Output function | normally open |
| Dimensions [mm] | 25.3 x 5 x 6.5 |
Electrical data
| Connection at circuit amplifier | yes |
|---|---|
| Switching amplifiers | connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW |
| Nominal voltage DC [V] | 8.2 |
| Current consumption [mA] | Target not detected: ≤ 1; Target detected: ≥ 2,2 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | NAMUR |
|---|---|
| Output function | normally open |
| Switching frequency DC [Hz] | 2000 |
| Short-circuit protection | yes |
| Overload protection | yes |
Monitoring range
| Magnetic sensitivity [mT] | 2 |
|---|---|
| Travel speed [m/s] | > 10 |
Accuracy / deviations
| Hysteresis [mm] | 1 |
|---|---|
| Repeatability [mm] | < 0.2 |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| Approval | BVS 09 ATEX E164; IECEx BVS 09.0065 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ATEX marking |
|
||||||||||
|
|
|||||||||||
| EMC |
|
||||||||||
| MTTF [years] | 2142 |
Safety classification
| Max. internal capacitance [nF] | 140 |
|---|---|
| Max. internal inductance [µH] | 400 |
Mechanical data
| Weight [g] | 93.9 |
|---|---|
| Mounting | flush mountable |
| Type of mounting | fastening clamp with combined slot / hexagon socket, width across flats 1.5 |
| Cylinder type | T-slot cylinders |
| Dimensions [mm] | 25.3 x 5 x 6.5 |
| Material | housing: PA; Fastening clamp: stainless steel |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 6 m, PVC; 2 x 0.14 mm² |
|---|
