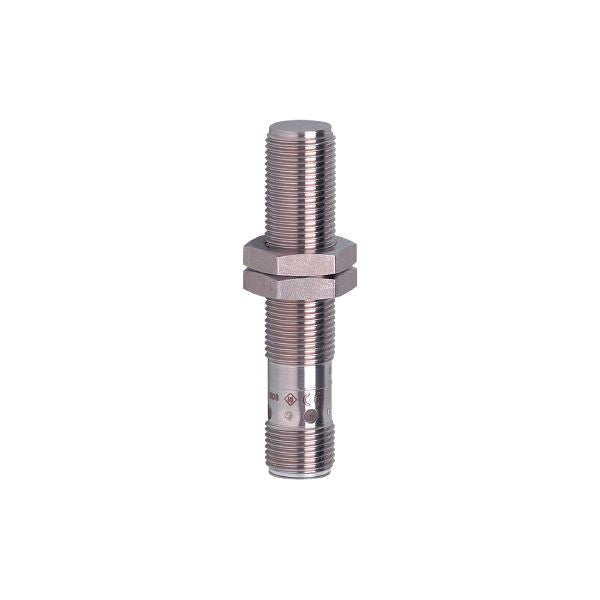

Ifm MFS210 Full-Metal Magnetic Sensor
Ifm MFS210 Full-Metal Magnetic Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Electrical design | PNP |
---|---|
Output function | normally closed |
Sensing range [mm] | 60; (referred to magnet M 4.0) |
Housing | Threaded type |
Dimensions [mm] | M12 x 1 / L = 60 |
System | gold-plated contacts; Full-metal housing |
---|---|
Pressure rating [bar] | 100 |
Operating voltage [V] | 10...30 DC |
---|---|
Current consumption [mA] | < 10 |
Protection class | III |
Reverse polarity protection | yes |
Electrical design | PNP |
---|---|
Output function | normally closed |
Max. voltage drop switching output DC [V] | 2.5 |
Permanent current rating of switching output DC [mA] | 200 |
Switching frequency DC [Hz] | 5000 |
Short-circuit protection | yes |
Overload protection | yes |
Sensing range [mm] | 60; (referred to magnet M 4.0) |
---|---|
Magnetic sensitivity [mT] | 1.3 |
Hysteresis [% of Sr] | 1...10 |
---|
Ambient temperature [°C] | -25...75 |
---|---|
Protection | IP 65; IP 67 |
EMC |
|
||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MTTF [years] | 1370 |
Weight [g] | 27.8 |
---|---|
Housing | Threaded type |
Dimensions [mm] | M12 x 1 / L = 60 |
Thread designation | M12 x 1 |
Material | housing: stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PA; lock nuts: brass |
Full-metal housing | yes |
Display |
|
---|
Items supplied |
|
---|
Pack quantity | 1 pcs. |
---|
Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
---|
