Ifm | SKU:
IF-MFH204-E

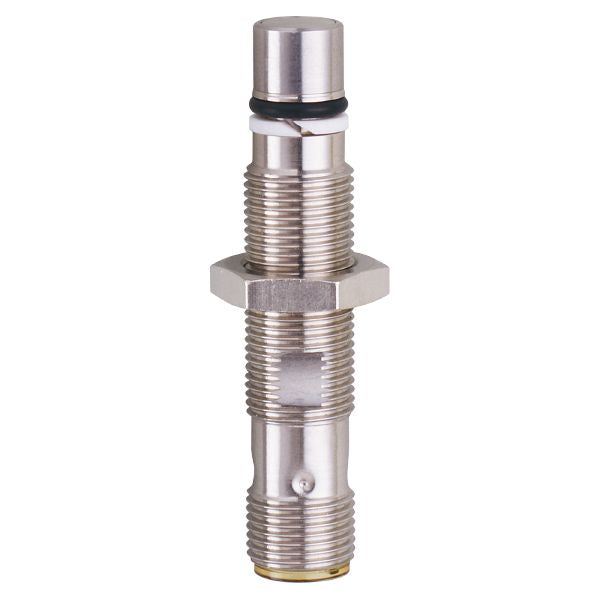

Ifm MFH204 Pressure-Resistant Position Sensor For Hydraulic Cylinders
$175.00 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm MFH204 Pressure-Resistant Position Sensor For Hydraulic Cylinders is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm MFH204 Pressure-Resistant Position Sensor For Hydraulic Cylinders
$175.00 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally closed |
| Sensing range [mm] | 1.8 |
| Housing | Threaded type |
| Dimensions [mm] | M12 x 1 / L = 60 |
Application
| System | Full-metal housing |
|---|---|
| Application | Hydraulic cylinder |
| Media | Detects ferrous metals |
| Min. bursting pressure [bar] | 2000 |
| Pressure rating [bar] | 500 |
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | < 23 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally closed |
| Max. voltage drop switching output DC [V] | 1.6 |
| Max. leakage current [mA] | 0.1 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Sensing range [mm] | 1.8 |
|---|
Accuracy / deviations
| Hysteresis [% of Sr] | < 15 |
|---|---|
| Switch-point drift [% of Sr] | 10 |
| Repeatability [% of Sr] | 10 |
Operating conditions
| Pressure peak [bar] | 1000 |
|---|---|
| Ambient temperature [°C] | -25...120 |
| Protection | IP 65; IP 68; IP 69K |
Tests / approvals
| EMC |
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Vibration resistance |
|
||||||||||||
| Shock resistance |
|
||||||||||||
| Continuous shock resistance |
|
||||||||||||
| MTTF [years] | 658 | ||||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 31.1 |
|---|---|
| Housing | Threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M12 x 1 / L = 60 |
| Thread designation | M12 x 1 |
| Material | housing: stainless steel; O-ring: FKM; supporting ring: PTFE |
| Tightening torque [Nm] | < 15 |
| Full-metal housing | yes |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A; Moulded body: PEI |
|---|
Diagrams and graphs
|
|
|
|---|
