Ifm | SKU:
IF-ME5015-E

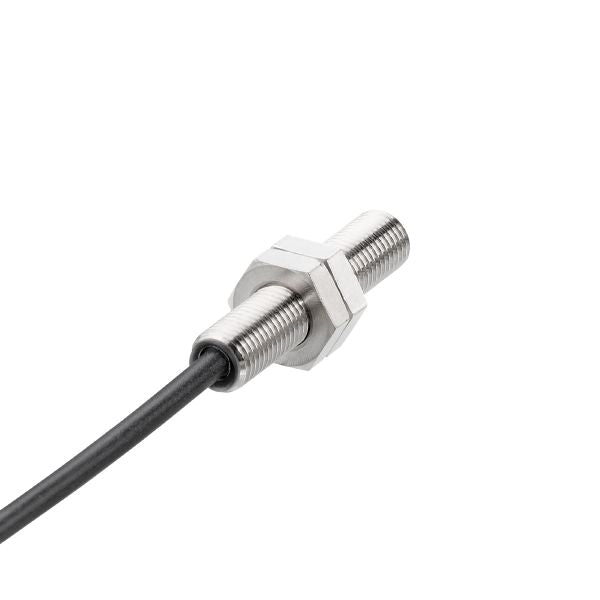

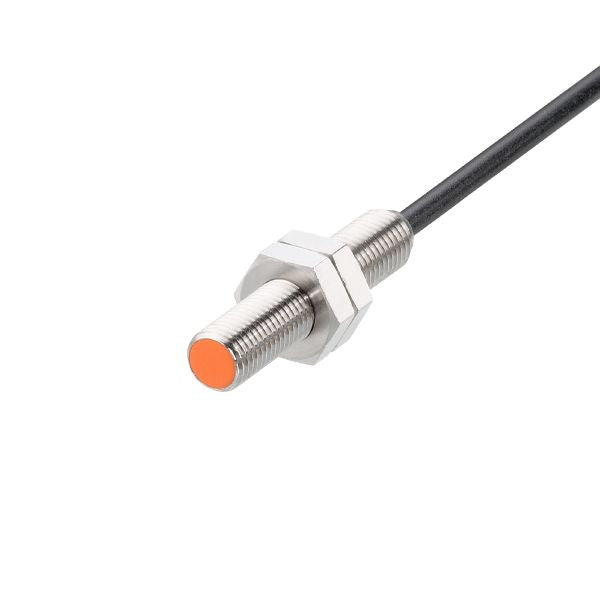

Ifm ME5015 Magnetic Sensor
$107.22 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm ME5015 Magnetic Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm ME5015 Magnetic Sensor
$107.22 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | NPN |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 60; (referred to magnet M 4.0) |
| Housing | Threaded type |
| Dimensions [mm] | M8 x 1 / L = 40 |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 10 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | NPN |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 5000 |
| Short-circuit protection | yes |
| Overload protection | yes |
Monitoring range
| Sensing range [mm] | 60; (referred to magnet M 4.0) |
|---|
Accuracy / deviations
| Hysteresis [% of Sr] | 1...10 |
|---|
Operating conditions
| Ambient temperature [°C] | -25...75 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 2028 |
Mechanical data
| Weight [g] | 69 |
|---|---|
| Housing | Threaded type |
| Dimensions [mm] | M8 x 1 / L = 40 |
| Thread designation | M8 x 1 |
| Material | housing: stainless steel (1.4404 / 316L); sensing face: PBT orange; end cap: PA; lock nuts: brass |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 2 m, PUR / PVC; 3 x 0.14 mm² |
|---|
