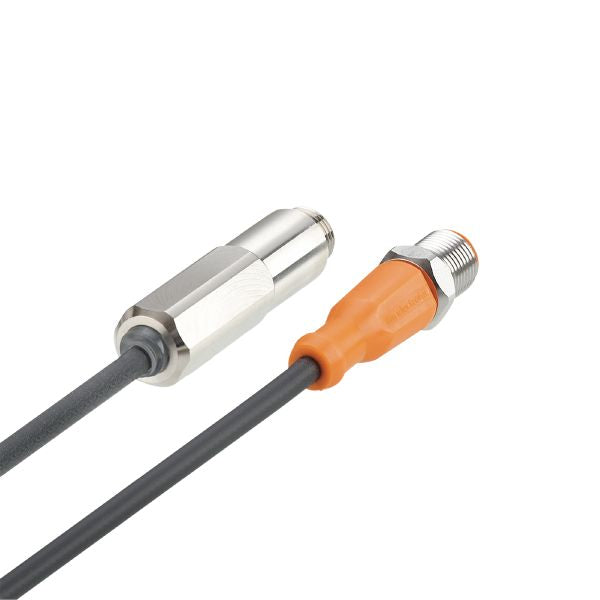

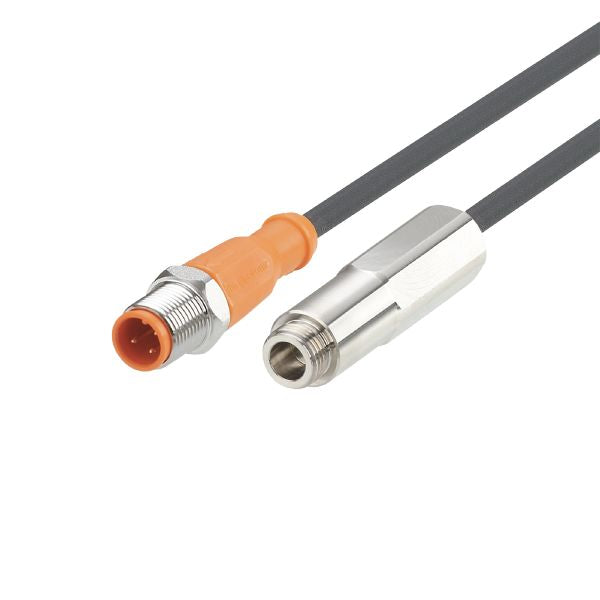

Ifm M9H212 Position Sensor

Name: Ifm M9H212 Position Sensor
Availability: BackOrder

$248.89 USD

Shipping calculated at checkout.

Ifm M9H212 Position Sensor is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Product characteristics

Electrical design	PNP
Output function	normally open
Dimensions [mm]	M11 x 1 / L = 56.5

Application

Application	lubricant distributor with plunger
Media	Detects ferrous metals
Pressure rating [bar]	350

Electrical data

Operating voltage [V]	10...60 DC
Rated insulation voltage [V]	60
Current consumption [mA]	< 20
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	300

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Max. leakage current [mA]	0.1
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	50
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Monitoring range

Real sensing range Sr [mm]	2 ± 10 %
Operating distance [mm]	0...1.62

Accuracy / deviations

Hysteresis [% of Sr]	3...15

Operating conditions

Ambient temperature [°C]

-25...70

Note on ambient temperature

Operating voltage: <60V

Ambient temperature [°C]

-40...85

Note on ambient temperature

Operating voltage: <45V

for flexibly laid cable: -25 °C

firmly laid cable: -40 °C

Protection

IP 65; IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m 80...2000 MHz
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V 0,15...80 MHz
EN 61000-4-8	30 A/m
EN 55011	class B
Noise emission and noise immunity according to the automotive directive 95/54/EC	E1 type approval
conducted interference in 24 V networks to ISO 7637-2: 2004 (pulse 1 to 4)
pulse	1 2a 2b 3a 3b 4
Severity level	III III III III III III
Failure criterion	C B C A A C

Vibration resistance

EN 60068-2-6 Fc	50x 20 g / 10...3000 Hz -20 °C
EN 60068-2-6 Fc	50x 20 g / 10...3000 Hz +50 °C

Shock resistance

EN 60068-2-27 Ea	3 x 100 g 11 ms / -25 °C
EN 60068-2-27 Ea	3 x 100 g 11 ms / +85 °C

Continuous shock resistance

EN 60068-2-27 Ea

4000 x 40 g 6 ms / -20 °C / 50 °C

MTTF [years]

1181

Mechanical data

Weight [g]	78.9
Mounting	flush mountable
Dimensions [mm]	M11 x 1 / L = 56.5
Thread designation	M11 x 1
Material	sensing face: stainless steel (1.4404 / 316L); housing: stainless steel (1.4404 / 316L); end cap: TPU (urethane)
Tightening torque [Nm]	< 18
Process connection	threaded connection M11 x 1 external thread

Displays / operating elements

Display

Switching status

LED, yellow

Remarks

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.5 m, PUR
	Connector: 1 x M12; coding: A
