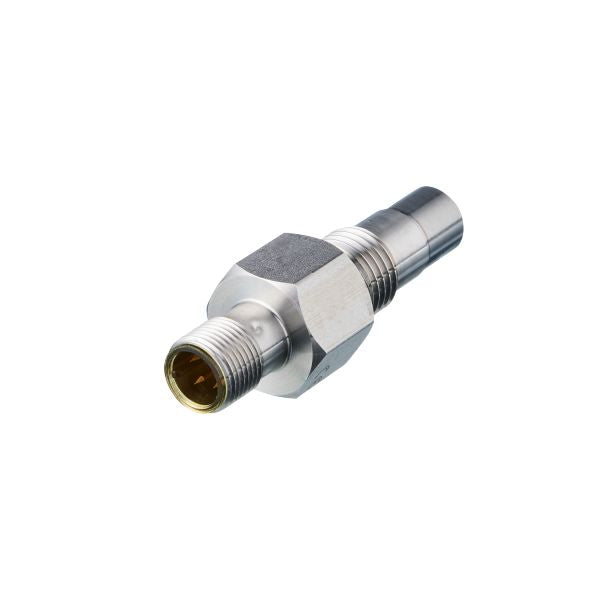

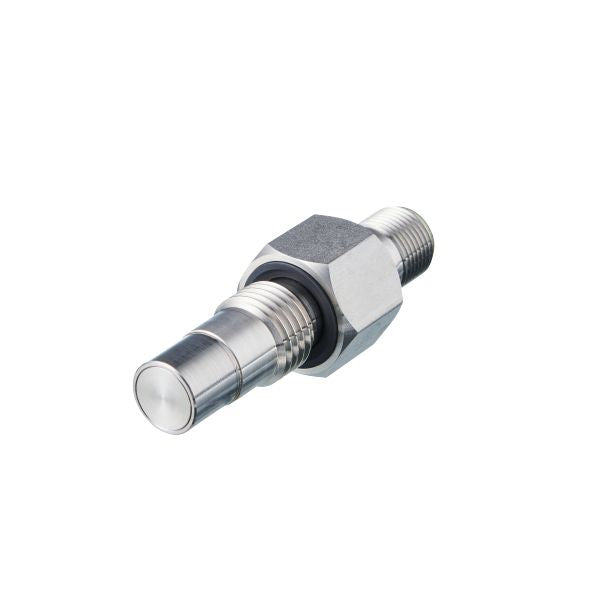

Ifm M9H207 Pressure-Resistant Position Sensor For Hydraulic Cylinders

Name: Ifm M9H207 Pressure-Resistant Position Sensor For Hydraulic Cylinders
Availability: BackOrder

$157.78 USD

Shipping calculated at checkout.

Ifm M9H207 Pressure-Resistant Position Sensor For Hydraulic Cylinders is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	2
Housing	Threaded type
Dimensions [mm]	M14 x 1.5 / L = 53

Application

System

gold-plated contacts; Full-metal housing

Application

Hydraulic cylinder

Media

Detects ferrous metals

Min. bursting pressure [bar]

2000

Pressure rating [bar]

dynamic	500
static	1000

Electrical data

Operating voltage [V]	10...36 DC
Rated insulation voltage [V]	60
Current consumption [mA]	< 23
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 300

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	1.6
Max. leakage current [mA]	0.1
Permanent current rating of switching output DC [mA]	200
Short-time current rating of switching output [mA]	200
Switching frequency DC [Hz]	1000
Type of short-circuit protection	yes (non-latching)
Short-circuit proof	yes
Overload protection	yes

Monitoring range

Sensing range [mm]	2
Real sensing range Sr [mm]	2 ± 10 %
Operating distance [mm]	0...1.62

Accuracy / deviations

Hysteresis [% of Sr]	< 15
Switch-point drift [% of Sr]	-10...10
Repeatability [% of Sr]	< 10

Operating conditions

Ambient temperature [°C]	120
Protection	IP 65; IP 68; IP 69K

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B
DIN ISO 11452-5	100 V/m

Vibration resistance

EN 60068-2-6 Fc

20 g 50 sweep cycles per frequency; 1 octave per minute in 3 axes / 10...3000 Hz -20...50 °C

Shock resistance

EN 60068-2-27 Ea

100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes / -40...85 °C

Fast temperature changes

EN 60068-2-14 Na

TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 10 s 50 cycles

MTTF [years]

1701

Mechanical data

Weight [g]	54.8
Housing	Threaded type
Mounting	flush mountable
Dimensions [mm]	M14 x 1.5 / L = 53
Thread designation	M14 x 1.5
Material	housing: stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); O-ring: FPM 90
Tightening torque [Nm]	< 25
Full-metal housing	yes

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Moulded body: PEI; Contacts: gold-plated
