Ifm | SKU:
IF-LR2350-E

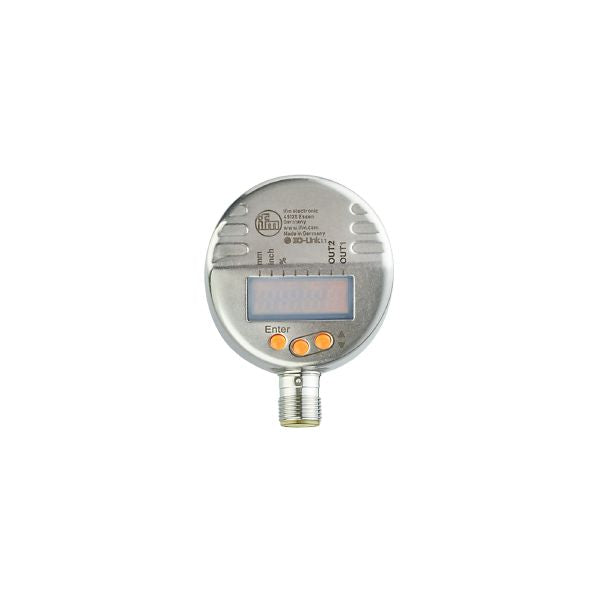

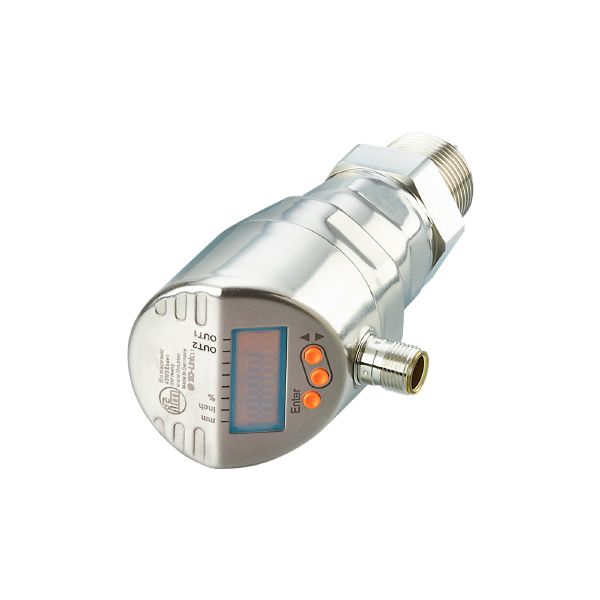

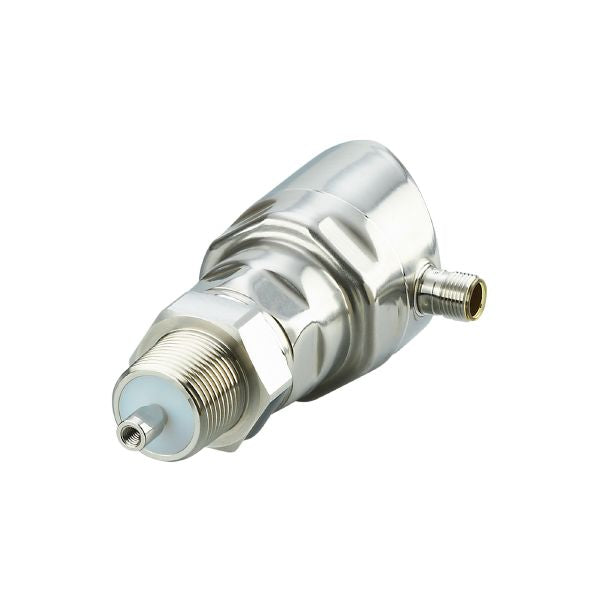

Ifm LR2350 Continuous Level Sensor (Guided Wave Radar)
$883.89 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm LR2350 Continuous Level Sensor (Guided Wave Radar) is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm LR2350 Continuous Level Sensor (Guided Wave Radar)
$883.89 USD
Unit price
/
Unavailable
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1; Number of analog outputs: 1 |
|---|---|
| Probe length L [mm] | 150...2000 |
| Process connection | threaded connection 3/4" NPT external thread |
Application
| System | gold-plated contacts |
|---|---|
| Application | for industrial applications |
| Media | Liquids |
| Dielectric constant of the medium | > 5 |
| Recommended media | water; water-based media |
| Process temperature [°C] | -20...100; (see note under remarks) |
| Pressure rating [bar] | 16 |
| Vacuum resistance [mbar] | -1000 |
| MAWP (for applications according to CRN) [bar] | 16 |
Electrical data
| Operating voltage [V] | 18...30 DC |
|---|---|
| Current consumption [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | < 3 |
| Measuring principle | guided wave radar |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1; Number of analog outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analog signal; IO-Link |
| Electrical design | PNP/NPN |
| Number of digital outputs | 1 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 150; (200 (...60 °C)) |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20, invertible; (scalable) |
| Max. load [Ω] | 500 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Measuring/setting range
| Probe length L [mm] | 150...2000 |
|---|---|
| Active range A [mm] | L-40 |
| Inactive range I1 / I2 [mm] | 30 / 10 |
| Sampling rate [Hz] | 4 |
Setting range
| Set point SP [mm] | 15...L-30 |
|---|---|
| Reset point rP [mm] | 10... L-35 |
| In steps of [mm] | 1 |
| Hysteresis [mm] | > 5 |
Accuracy / deviations
| Measuring error [mm] | ± 7 |
|---|---|
| Offset error [mm] | 5 |
| Resolution [mm] | 1 |
| Zero signal (current) [mA] | 4.0 |
| Full signal (current) [mA] | 20 |
| Temperature drift per 10 K | ± 0.2 % |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis | ||||
| SIO mode | yes | ||||
| Required master port class | A | ||||
| Process data analog | 1 | ||||
| Process data binary | 2 | ||||
| Min. process cycle time [ms] | 2.3 | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -40...80 |
|---|---|
| Storage temperature [°C] | -40...100 |
| Protection | IP 68; IP 69K |
Tests / approvals
| EMC |
|
||||||
|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||
| Vibration resistance |
|
||||||
| MTTF [years] | 216 |
Mechanical data
| Weight [g] | 383. |
|---|
