Ifm | SKU:
IF-LMT104-E

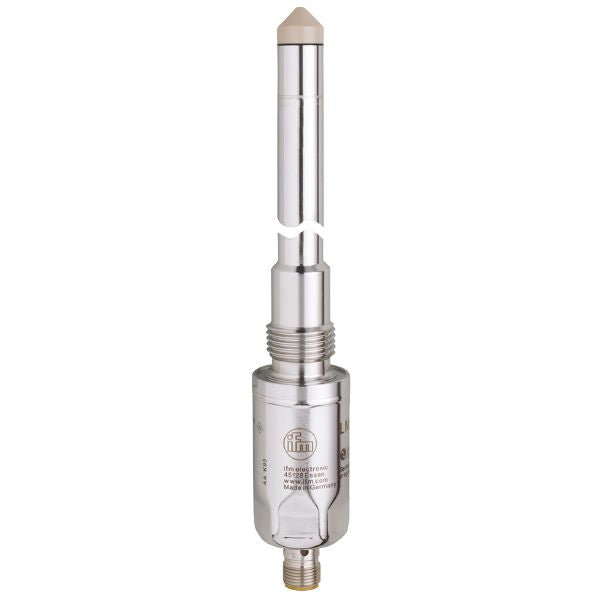

Ifm LMT104 Sensor For Point Level Detection
$382.78 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm LMT104 Sensor For Point Level Detection is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm LMT104 Sensor For Point Level Detection
$382.78 USD
Unit price
/
Unavailable
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|---|
| Factory setting | water-based media |
| Process connection | threaded connection G 1/2 sealing cone |
Application
| System | gold-plated contacts |
|---|---|
| Media | Liquids; viscous media; powder |
| Recommended media | water; water-based media; oils; oil-based media; powder |
| Cannot be used for | See the operating instructions, chapter "Function and features". |
| Probe length [mm] | 153 |
| Tank pressure [bar] | -1...40 |
| MAWP (for applications according to CRN) [bar] | 40 |
Oil
| Medium temperature [°C] | -20...100 |
|---|---|
| Medium temperature short time [°C] | -20...150; (1 h) |
Water
| Medium temperature [°C] | -20...100 |
|---|---|
| Medium temperature short time [°C] | -20...150; (1 h) |
Electrical data
| Operating voltage [V] | 18...30 DC |
|---|---|
| Current consumption [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Measuring principle | capacitive |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; IO-Link |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Measuring/setting range
| Factory setting | water-based media |
|---|
Reaction times
| Response time [s] | < 0.5 |
|---|
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Process Data Variable; Device Identification | ||||
| SIO mode | yes | ||||
| Required master port class | A | ||||
| Process data analog | 1 | ||||
| Process data binary | 2 | ||||
| Min. process cycle time [ms] | 2.3 | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -20...85 | |||
|---|---|---|---|---|
| Note on ambient temperature |
|
|||
| Storage temperature [°C] | -40...85 | |||
| Protection | IP 68; IP 69K |
Tests / approvals
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| MTTF [years] | 222 | ||||
| UL approval |
|
Mechanical data
| Weight [g] | 321.5 |
|---|---|
| Dimensions [mm] | Ø 30 / L = 255 |
| Material | stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; PEI; FKM |
| Materials (wetted parts) | stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; surface characteristics: Ra < 0,8 / Rz 4; FKM |
| Process connection | threaded connection G 1/2 sealing cone |
Displays / operating elements
| Display |
|
|---|
Remarks
