Ifm | SKU: IF-KTE101-E | Barcode: DOES NOT APPLY

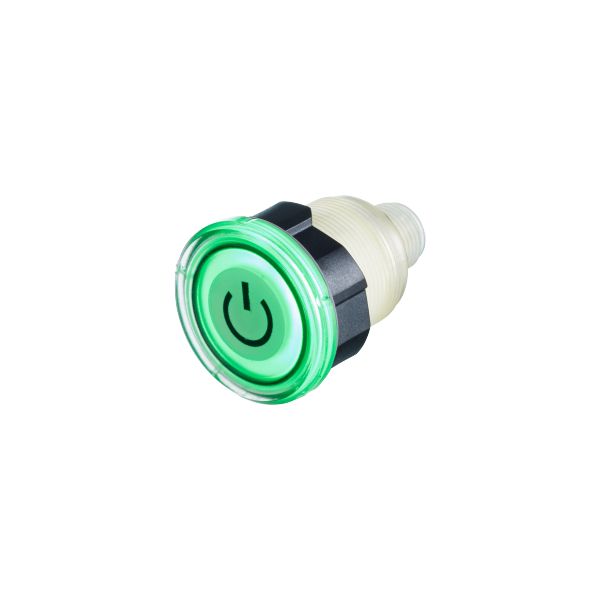

Ifm KTE101 Capacitive Touch Sensor

Name: Ifm KTE101 Capacitive Touch Sensor
Availability: BackOrder

$94.44 USD

Shipping calculated at checkout.

Ifm KTE101 Capacitive Touch Sensor is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Product characteristics

Electrical design	PNP/NPN; (configurable)
Output function	normally open / closed; (configurable)
Communication interface	IO-Link
Housing	Threaded type
Dimensions [mm]	M22 x 1 / L = 39.7

Application

Principle of operation	dynamic; static; Bistable; combination; (configurable)

Electrical data

Operating voltage [V]	8...32 DC
Protection class	III
Reverse polarity protection	yes

Current consumption

< 7,2 mA; (LED off: Ub = 24V)

< 125 mA; (LED white, max. brightness: Ub = 8V)

< 79 mA; (LED white, max. brightness: Ub = 12V)

< 43 mA; (LED white, max. brightness: Ub = 24V)

< 35 mA; (LED white, max. brightness : Ub = 32V)

Inputs

Total number of inputs	2
Switching level high [V]	< 4.8; (at 24V safely off : Voltage <= Ub*0,2)
Switching level low [V]	> 19.2; (at 24V safely on : Voltage >= Ub*0,8)

Inputs

according to the standard IEC 61131-2 (Typ 3)

Outputs

Electrical design	PNP/NPN; (configurable)
Output function	normally open / closed; (configurable)
Max. voltage drop switching output DC [V]	1.5
Permanent current rating of switching output DC [mA]	200
Short-circuit protection	yes
Overload protection	yes

Reaction times

Response time [ms]	64

Software / programming

Parameter setting options	normally open / closed; PnP/nPn; static; dynamic; Bistable; combination; Switch-on and switch-off delay; brightness; Sensitivität; Operating conditions

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1.3

Profiles

Function class	Description
0x0002	Fixed Switching Sensor
0x4000	Identification and Diagnosis
0x8101	Locator
0x8102	ProductURI
0x800C	Sensor Control

Min. process cycle time [ms]

13.2

Operating conditions

Ambient temperature [°C]	-30...65
Protection	IP 65; IP 67; IP 69K; (on the front)

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m / 3 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
IEC 61000-6-3, EN 55011	(Class B)
IEC 61000-4-5 Surge	1 kV (L+ to L- , 42 Ω, 0,5 µF) / 0,5 kV (all cables to L- , 42 Ω, 0,5 µF)

Vibration resistance

EN 60068-2-6 Fc

20 g (10...3000 Hz) / 50 sweep cycles per frequency; 1 octave per minute in 3 axes

Shock resistance

EN 60068-2-27 Ea

50 g 11 ms half-sine; 20 shocks each in every direction of the 3 coordinate axes

Continuous shock resistance

EN 60068-2-29 Eb

40 g 6 ms half-sine; 8000 shocks each in every direction of the 3 coordinate axes

MTTF [years]

218

UL approval

Ta	-30...60 °C
Enclosure type	Type 1
voltage supply	Limited Voltage/Current
File number UL	E174191

Mechanical data

Weight [g]	48.4
Housing	Threaded type
Dimensions [mm]	M22 x 1 / L = 39.7
Thread designation	M22 x 1
Material	housing: PA; lock nut: PBT

Displays / operating elements

Display

Power

LED, RGB configurable

Accessories

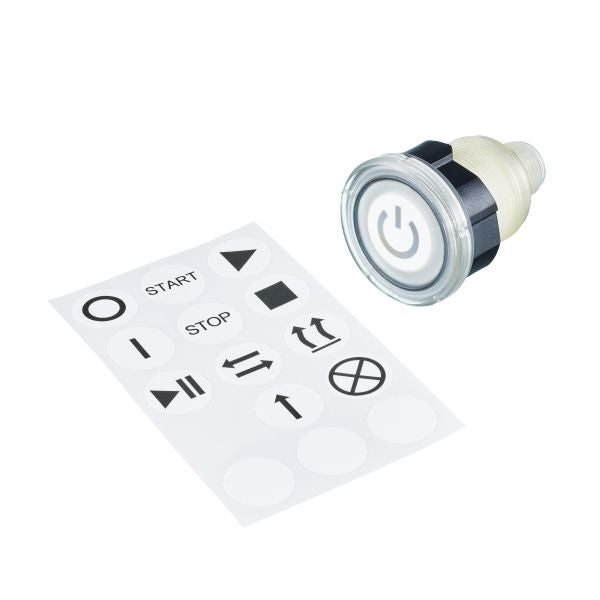

Items supplied

lock nuts: 1

transparent symbol disc: 1

symbol sticker: 1

Accessory required

Symbol disc

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection
