Ifm | SKU:
IF-KT6300-E

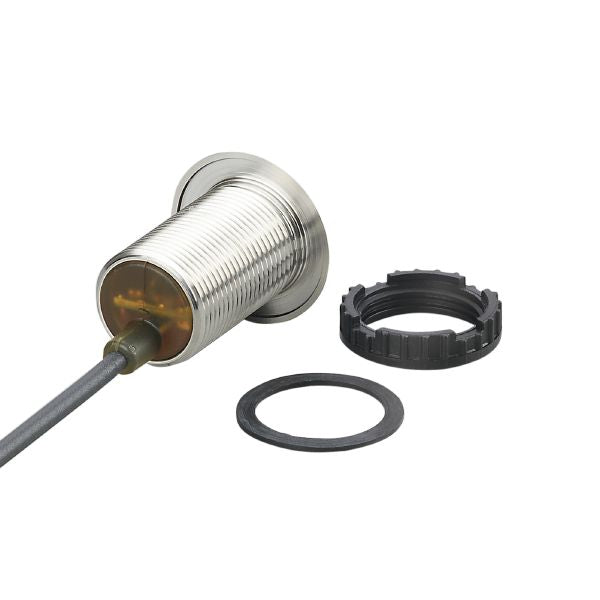

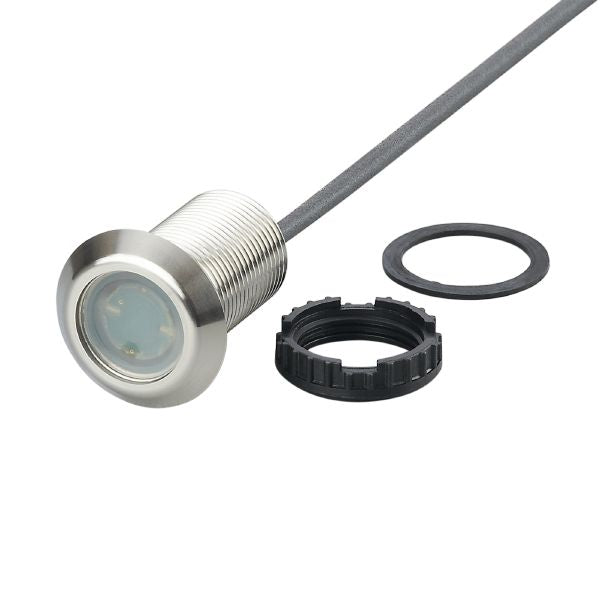

Ifm KT6300 Illuminated Capacitive Touch Sensor
$132.78 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm KT6300 Illuminated Capacitive Touch Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm KT6300 Illuminated Capacitive Touch Sensor
$132.78 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open / closed |
| Communication interface | IO-Link |
| Dimensions [mm] | Ø 32 / L = 39 |
Application
| Principle of operation | dynamic; (static; Bistable configurable) |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | 30 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open / closed |
| Permanent current rating of switching output DC [mA] | 150 |
| Short-circuit protection | yes |
| Overload protection | yes |
Reaction times
| Response time [ms] | 35 |
|---|
Software / programming
| Parameter setting options | normally open / closed; PnP/nPn; statisch / dynamisch / bistabil / Ein- Ausschaltverzögerung; brightness; Aktivierungs- Operations- Inputfarbe; Sensitivität |
|---|
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Type 0 Generic Profiled Sensor; Identification and Diagnosis; Fixed Switching Signal Channel | ||||
| SIO mode | yes | ||||
| Required master port class | A | ||||
| Process data analog | 1 | ||||
| Process data binary | 1 | ||||
| Min. process cycle time [ms] | 3.5 | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|---|
| Protection | IP 65; IP 67; IP 69K; (on the front) |
Tests / approvals
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 318 |
Mechanical data
| Weight [g] | 119.5 |
|---|---|
| Dimensions [mm] | Ø 32 / L = 39 |
| Material | housing: stainless steel (1.4305 / 303); actuating surface: PA Grilamid TR 90UV |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
||
|---|---|---|---|
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 2 m, PUR |
|---|
