Ifm | SKU:
IF-KT5102-E

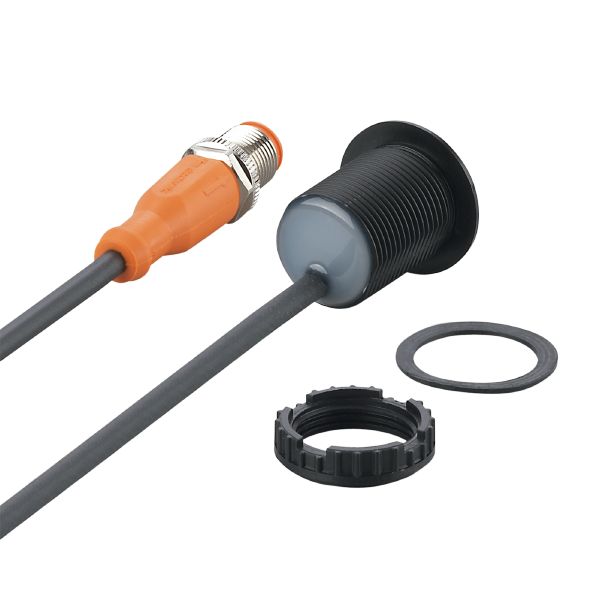

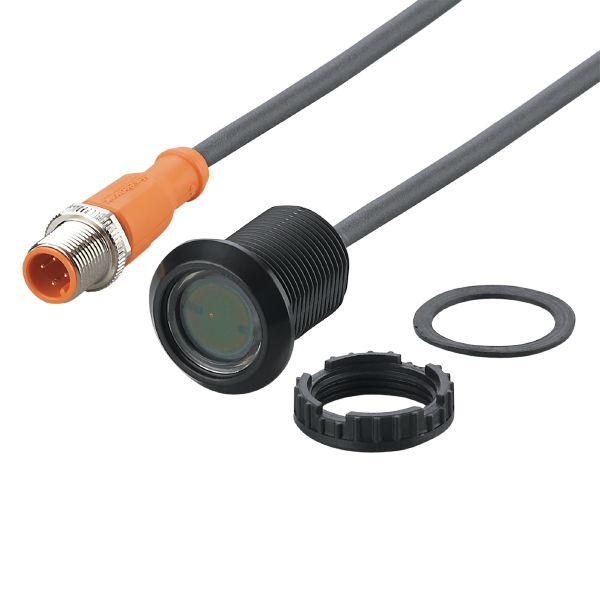

Ifm KT5102 Illuminated Capacitive Touch Sensor
$108.89 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm KT5102 Illuminated Capacitive Touch Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm KT5102 Illuminated Capacitive Touch Sensor
$108.89 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Dimensions [mm] | Ø 29 / L = 31 |
Application
| Principle of operation | dynamic |
|---|
Electrical data
| Operating voltage [V] | 12...30 DC |
|---|---|
| Current consumption [mA] | 30 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 500 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Permanent current rating of switching output DC [mA] | 200 |
| Short-circuit protection | yes |
| Overload protection | yes |
| Length of output signal [ms] | 300 |
Reaction times
| Response time [ms] | 35 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 65; IP 67; IP 69K; (on the front) |
Tests / approvals
| MTTF [years] | 352 |
|---|
Mechanical data
| Weight [g] | 55.5 |
|---|---|
| Dimensions [mm] | Ø 29 / L = 31 |
| Material | PA 6.6-GF30 black; actuating surface: PA Grilamid TR 90UV |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
||
|---|---|---|---|
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Cable: 0.3 m, PUR |
|---|---|
| Connection | Connector: 1 x M12; coding: A |
