Ifm | SKU: IF-KT5009-E | Barcode: DOES NOT APPLY

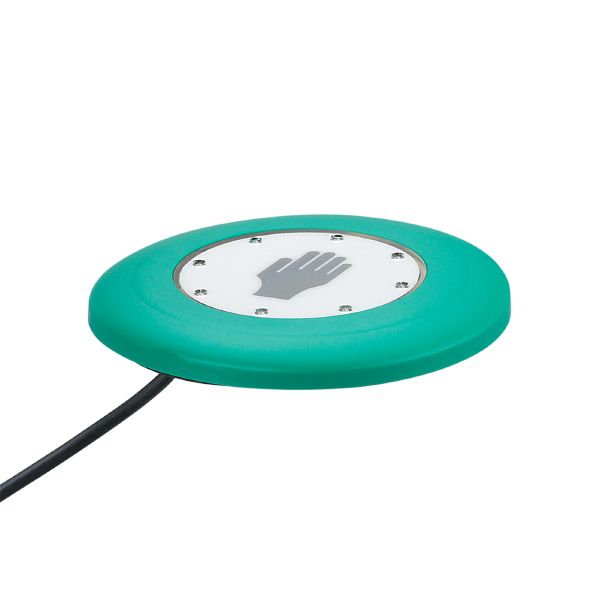

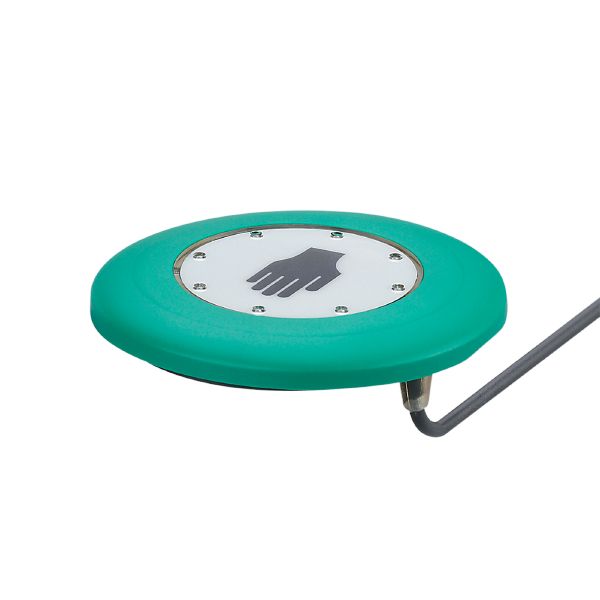

Ifm KT5009 Capacitive Touch Sensor

Name: Ifm KT5009 Capacitive Touch Sensor
Availability: BackOrder

$203.33 USD

Shipping calculated at checkout.

Ifm KT5009 Capacitive Touch Sensor is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Product characteristics

Electrical design	PNP
Output function	normally open
Dimensions [mm]	Ø 100 / L = 11

Application

Principle of operation	dynamic

Electrical data

Operating voltage [V]	12...30 DC
Current consumption [mA]	30
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	500

Outputs

Electrical design	PNP
Output function	normally open
Permanent current rating of switching output DC [mA]	200
Short-circuit protection	yes
Overload protection	yes
Length of output signal [ms]	300

Reaction times

Response time [ms]	35

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 67; IP 69K; (on the front)

Tests / approvals

MTTF [years]	419

Mechanical data

Weight [g]	160.5
Dimensions [mm]	Ø 100 / L = 11
Material	actuating surface: PA Grilamid TR 90UV transparent; housing: PC/ABS black; Colored surround: PC/ABS green

Displays / operating elements

Display

Switching status	8 x LED, red
Function	8 x LED, green can be triggered

Accessories

Accessories (optional)

surround in different colors

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR
