Ifm | SKU:
IF-KQ6003-E

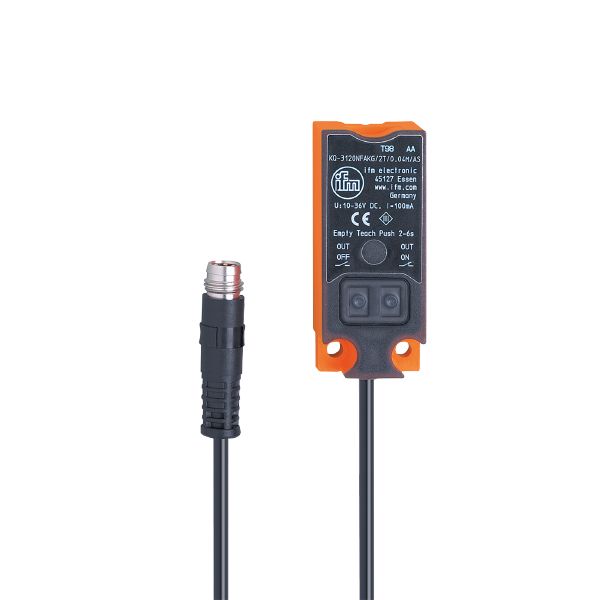

Ifm KQ6003 Capacitive Sensor
$132.22 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm KQ6003 Capacitive Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm KQ6003 Capacitive Sensor
$132.22 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | PNP/NPN; (Automatic load detection PNP/NPN) |
|---|---|
| Output function | normally open / closed; (selectable) |
| Sensing range [mm] | 12 |
| Communication interface | IO-Link |
| Housing | rectangular |
| Dimensions [mm] | 20 x 14 x 48 |
Application
| Installation | detection through non-metallic container wall or on bypass pipes |
|---|---|
| Media | dry bulk material; liquids |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 17 |
| Protection class | III |
| Reverse polarity protection | yes |
| Measuring principle | capacitive |
Outputs
| Electrical design | PNP/NPN; (Automatic load detection PNP/NPN) |
|---|---|
| Output function | normally open / closed; (selectable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 10 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Sensing range [mm] | 12 |
|---|---|
| Real sensing range Sr [mm] | 12 ± 10 % |
Accuracy / deviations
| Hysteresis [% of Sr] | 1...15 |
|---|---|
| Switch-point drift [% of Sr] | -20...20 |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM1 (4,8 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 CDV | ||||
| Profiles | Smart Sensor | ||||
| SIO mode | yes | ||||
| Min. process cycle time [ms] | 100.8 | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 65; IP 67; IP 69K |
Tests / approvals
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||||||
| Vibration resistance |
|
||||||||||
| MTTF [years] | 623 | ||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 25.2 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions [mm] | 20 x 14 x 48 |
| Material | housing: PBT reinforced glass-fiber; Pushbuttons: TPE-U; cover: PC reinforced glass-fiber |
Displays / operating elements
| Display |
|
||
|---|---|---|---|
| Teach function | yes | ||
| Electronic lock | yes |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Cable: 0.04 m, PVC; 3 x 0.14 mm² | |
| Connector: 1 x M8; coding: A |
