Ifm | SKU:
IF-KQ5101-E

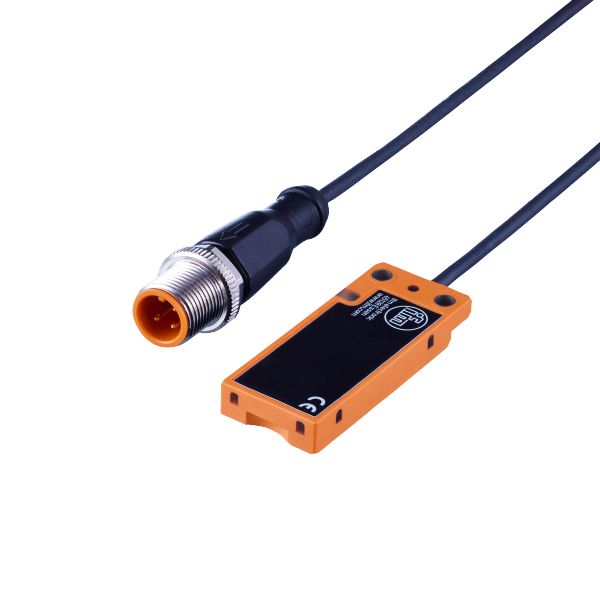

Ifm KQ5101 Capacitive Sensor
$108.89 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm KQ5101 Capacitive Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm KQ5101 Capacitive Sensor
$108.89 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open / closed; (selectable) |
| Sensing range [mm] | 12 |
| Communication interface | IO-Link |
| Housing | rectangular |
| Dimensions [mm] | 20 x 7 x 48 |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 17 |
| Protection class | III |
| Reverse polarity protection | yes |
| Measuring principle | capacitive |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open / closed; (selectable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 10 |
| Short-circuit protection | yes |
| Overload protection | yes |
Monitoring range
| Sensing range [mm] | 12 |
|---|---|
| Real sensing range Sr [mm] | 12 ± 10 % |
Accuracy / deviations
| Hysteresis [% of Sr] | 1...15 |
|---|---|
| Switch-point drift [% of Sr] | -20...20 |
Software / programming
| Parameter setting options | only via IO-Link |
|---|
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM1 (4,8 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 CDV | ||||
| Profiles | Smart Sensor | ||||
| SIO mode | yes | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -25...80 | |
|---|---|---|
| Note on ambient temperature |
|
|
| Protection | IP 65; IP 67; IP 69K |
Tests / approvals
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Vibration resistance |
|
||||||||||
| Shock resistance |
|
||||||||||
| MTTF [years] | 771 | ||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 27.4 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions [mm] | 20 x 7 x 48 |
| Material | PBT; TPE-U; stainless steel |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Cable: 0.1 m, PUR, Ø 2.9 mm |
|---|---|
| Connection | Connector: 1 x M12; coding: A |
