Ifm | SKU:
IF-KI503A-E

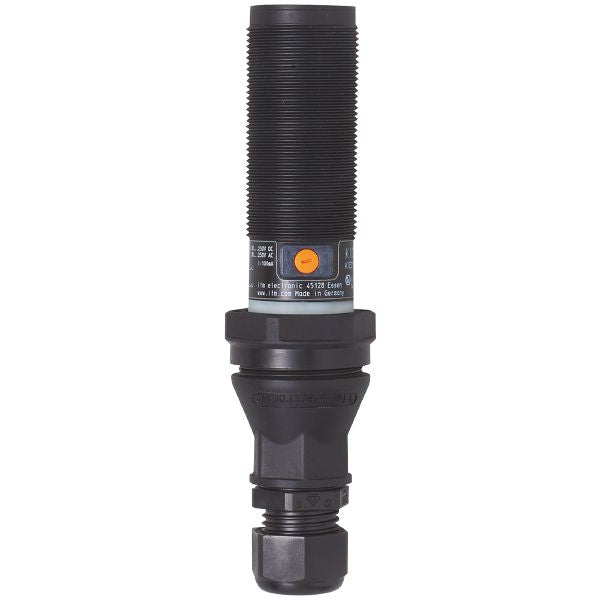

Ifm KI503A Capacitive Sensor
$223.33 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm KI503A Capacitive Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm KI503A Capacitive Sensor
$223.33 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | complementary |
| Sensing range [mm] | 15 |
| Housing | Threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 150 |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 20 |
| Protection class | III |
| Reverse polarity protection | yes |
| Measuring principle | capacitive |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | complementary |
| Max. voltage drop switching output DC [V] | 2.5 |
| Max. leakage current [mA] | 0.1 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 10 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Short-circuit proof | yes |
| Overload protection | yes |
Monitoring range
| Sensing range [mm] | 15 |
|---|---|
| Sensing range adjustable | yes |
| Factory setting sensing range [mm] | 15 |
| Real sensing range Sr [mm] | 15 ± 10 % |
Accuracy / deviations
| Hysteresis [% of Sr] | 1...15 |
|---|---|
| Switch-point drift [% of Sr] | -20...20 |
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| ATEX marking |
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EMC |
|
||||||||||||
| MTTF [years] | 463 |
Mechanical data
| Weight [g] | 149 |
|---|---|
| Housing | Threaded type |
| Mounting | non-flush mountable |
| Dimensions [mm] | M30 x 1.5 / L = 150 |
| Thread designation | M30 x 1.5 |
| Material | PBT; PA |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | terminals: 0.34...1.5 mm²; Cable sheath: Ø 5...9 mm; Cable gland: M20 X 1.5 |
|---|
