Ifm | SKU:
IF-KI5031-E

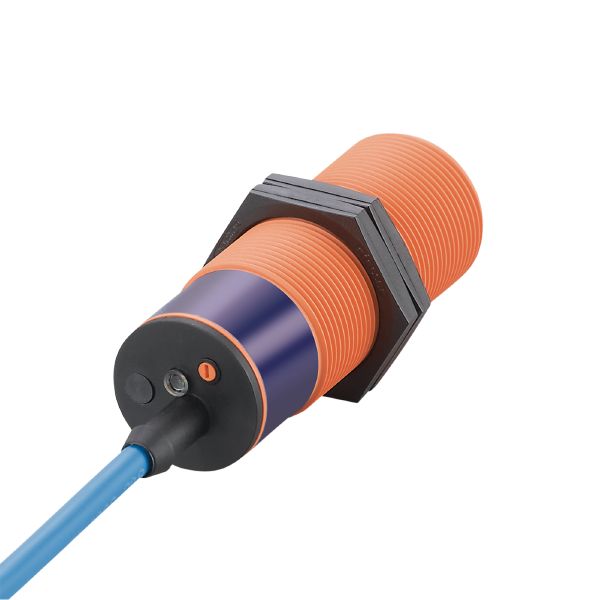

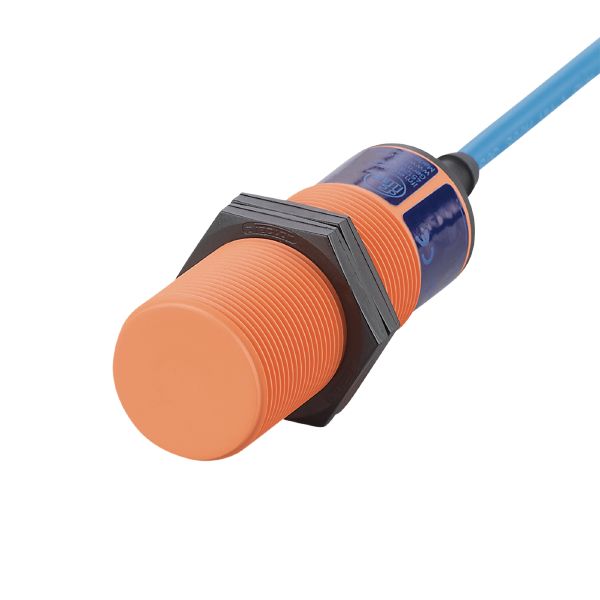

Ifm KI5031 Capacitive Namur Sensor
$194.44 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm KI5031 Capacitive Namur Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm KI5031 Capacitive Namur Sensor
$194.44 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | NAMUR |
|---|---|
| Output function | normally closed |
| Sensing range [mm] | 15 |
| Housing | Threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 81 |
Electrical data
| Connection at circuit amplifier | yes |
|---|---|
| Switching amplifiers | connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW |
| Nominal voltage DC [V] | 8.2; (1kΩ) |
| Supply voltage DC [V] | 7.5...15 |
| Current consumption [mA] | < 1; (disabled; conductive: > 2,2) |
| Protection class | II |
| Measuring principle | capacitive |
Outputs
| Electrical design | NAMUR |
|---|---|
| Output function | normally closed |
| Switching frequency DC [Hz] | 40 |
| Short-circuit proof | yes |
Monitoring range
| Sensing range [mm] | 15 |
|---|---|
| Sensing range adjustable | yes |
| Factory setting sensing range [mm] | 15 |
| Real sensing range Sr [mm] | 15 ± 10 % |
Accuracy / deviations
| Correction factor | glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
| Switch-point drift [% of Sr] | -15...15 |
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| Approval | DMT 01 ATEX E 020; TIIS TC15627; IECEx BVS 06.0003 | ||
|---|---|---|---|
| ATEX marking |
|
||
|
|
|||
| EMC |
|
||
| MTTF [years] | 841 |
Safety classification
| Max. internal capacitance [nF] | 375.64 |
|---|---|
| Max. internal inductance [µH] | 3 |
Mechanical data
| Weight [g] | 378.5 |
|---|---|
| Housing | Threaded type |
| Mounting | non-flush mountable |
| Dimensions [mm] | M30 x 1.5 / L = 81 |
| Thread designation | M30 x 1.5 |
| Material | PBT |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 6 m, PVC; 2 x 0.5 mm² |
|---|
