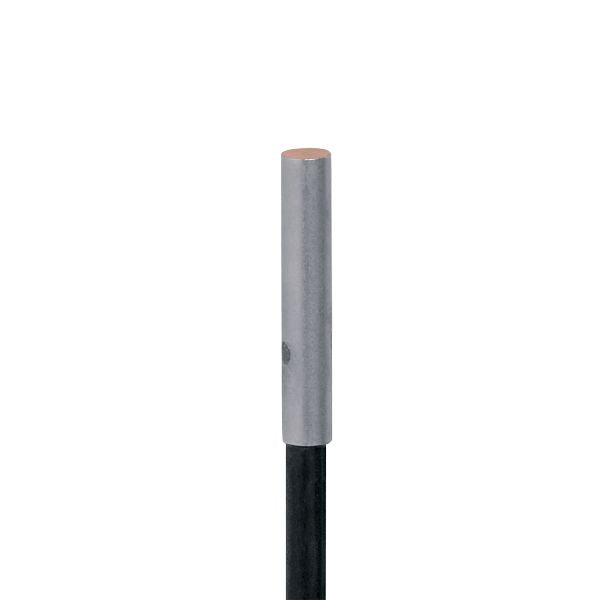

Ifm IZ5052 Inductive Sensor

Name: Ifm IZ5052 Inductive Sensor
Availability: BackOrder

SKU IF-IZ5052-E

$144.44 USD - $144.44 USD

$144.44 USD

$144.44 USD - $144.44 USD

$144.44 USD

Availability:

0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	1.2
Housing	tubular
Dimensions [mm]	Ø 4 / L = 23

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	15; (24 V)
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	2000
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Monitoring range

Sensing range [mm]	1.2
Operating distance [mm]	0...0.97

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...15

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 65

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	3 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	3 V
EN 55011	class B

MTTF [years]

2060

Mechanical data

Weight [g]	40
Housing	tubular
Mounting	flush mountable
Dimensions [mm]	Ø 4 / L = 23
Material	stainless steel (1.4305 / 303); sensing face: POM

Displays / operating elements

Display

Switching status

1 x LED, yellow

Accessories

Items supplied

Mounting clamp: 1

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 3 x 0.14 mm²
