Ifm | SKU:
IF-IG0345-E

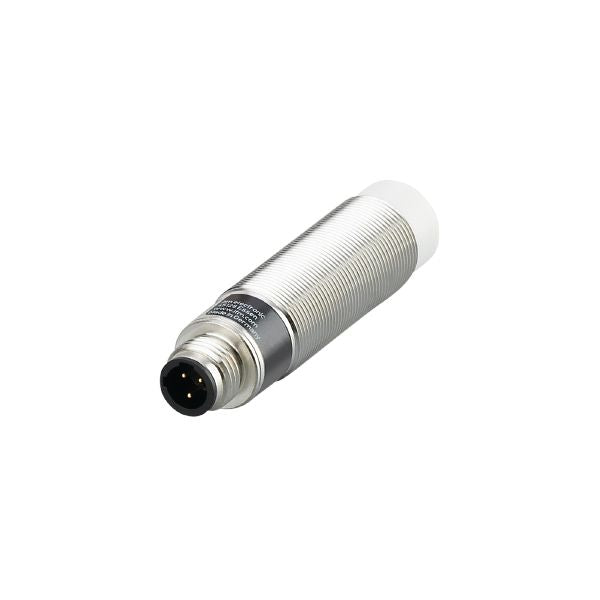

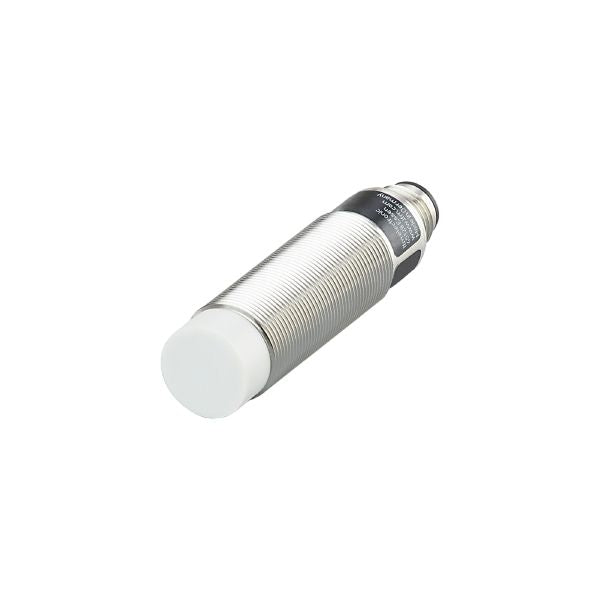

Ifm IG0345 Inductive Sensor
$156.67 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm IG0345 Inductive Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm IG0345 Inductive Sensor
$156.67 USD
Unit price
/
Unavailable
Product characteristics
| Output function | normally open |
|---|---|
| Sensing range [mm] | 12 |
| Housing | Threaded type |
| Dimensions [mm] | M18 x 1 |
Application
| System | Increased sensing range |
|---|
Electrical data
| Operating voltage [V] | 20...250 AC/DC |
|---|---|
| Protection class | I |
| Reverse polarity protection | no |
Outputs
| Output function | normally open |
|---|---|
| Max. voltage drop switching output DC [V] | 6 |
| Max. voltage drop switching output AC [V] | 6.5 |
| Minimum load current [mA] | 5 |
| Max. leakage current [mA] | 1 (250 V AC) / 0.8 (140 V AC) / 0.8 (24 V DC) |
| Permanent current rating of switching output AC [mA] | 250; (350 (...50 °C)) |
| Permanent current rating of switching output DC [mA] | 100 |
| Short-time current rating of switching output [mA] | 2200; (20 ms / 0,5 Hz) |
| Switching frequency AC [Hz] | 25 |
| Switching frequency DC [Hz] | 90 |
| Short-circuit proof | no |
| Overload protection | no |
Monitoring range
| Sensing range [mm] | 12 |
|---|---|
| Operating distance [mm] | 0...9.7 |
| Increased sensing range | yes |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.5 / copper: 0.4 |
|---|---|
| Hysteresis [% of Sr] | 3...15 |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 616 | ||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 63.2 |
|---|---|
| Housing | Threaded type |
| Mounting | non-flush mountable |
| Dimensions [mm] | M18 x 1 |
| Thread designation | M18 x 1 |
| Material | brass white bronze coated; PA; PBT |
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting |
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connector: 1 x 1/2"; coding: C |
