Ifm | SKU:
IF-IFR203-E

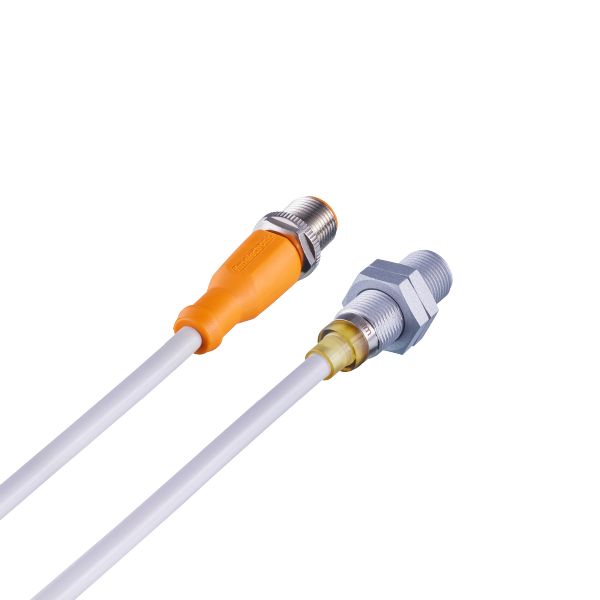

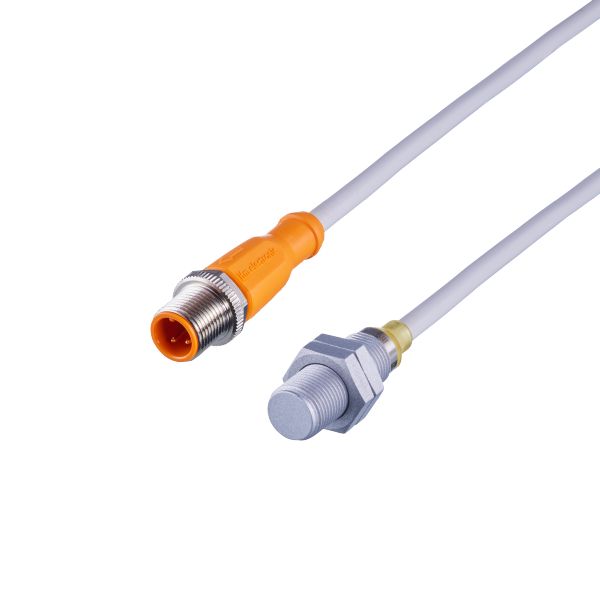

Ifm IFR203 Inductive Full-Metal Sensor
$103.89 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm IFR203 Inductive Full-Metal Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm IFR203 Inductive Full-Metal Sensor
$103.89 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 4 |
| Housing | Threaded type |
| Dimensions [mm] | M12 x 1 / L = 35 |
Application
| System | gold-plated contacts; Increased sensing range; Full-metal housing; optical setting aid | |
|---|---|---|
| Application | Inductive sensors for welding applications | |
| Pressure rating [bar] | 50 | |
| Note on pressure rating |
|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 3.2 |
| Minimum load current [mA] | 2 |
| Max. leakage current [mA] | 0.6 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 75 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Sensing range [mm] | 4 |
|---|---|
| Operating distance [mm] | 0...3.24 |
| Increased sensing range | yes |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.7 / aluminum: 0.6 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 1...20 |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 65; IP 66; IP 67; IP 68; IP 69K |
Tests / approvals
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Impact resistance |
|
||||||||||
| MTTF [years] | 960 | ||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 50 |
|---|---|
| Housing | Threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M12 x 1 / L = 35 |
| Thread designation | M12 x 1 |
| Material | housing: stainless steel (1.4404 / 316L) weld coated; sensing face: stainless steel (1.4404 / 316L) weld coated; cable plug: PEI; lock nuts: stainless steel (1.4404 / 316L) weld coated |
| Tightening torque [Nm] | 6 |
| Full-metal housing | yes |
Displays / operating elements
| Display |
|
||||
|---|---|---|---|---|---|
| Optical setting aid | yes |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Cable: 0.3 m, PVC; 2 x 0.5 mm² |
|---|---|
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
