Ifm | SKU: IF-IFP201-E | Barcode: DOES NOT APPLY

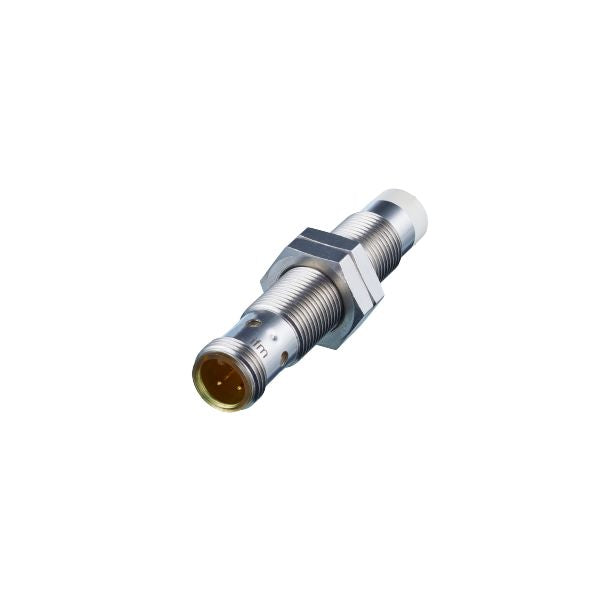

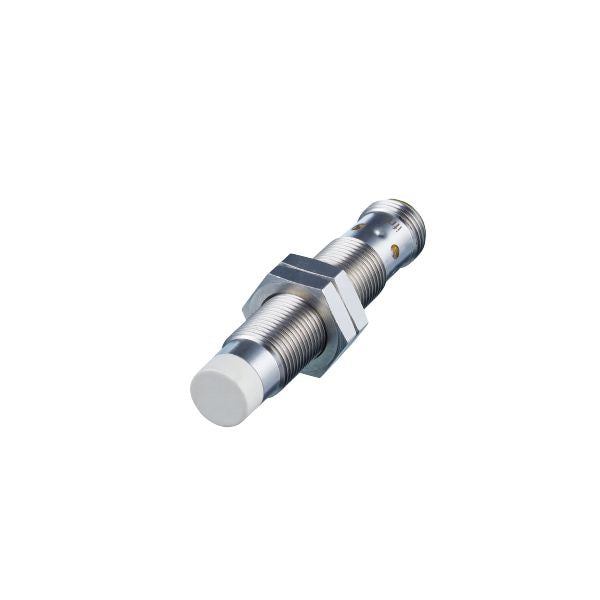

Ifm IFP201 Inductive Sensor

Name: Ifm IFP201 Inductive Sensor
Availability: BackOrder

$703.33 USD

Shipping calculated at checkout.

Ifm IFP201 Inductive Sensor is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Product characteristics

Electrical design	PNP/NPN; (configurable)
Output function	normally open / closed; (configurable)
Communication interface	IO-Link
Housing	Threaded type
Dimensions [mm]	M12 x 1 / L = 60

Application

System	Magnetic-field immune
Magnetic-field immune	yes
Max. electromagnetic field immunity [mT]	300

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 20
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN; (configurable)
Output function	normally open / closed; (configurable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	75
Short-circuit protection	yes
Overload protection	yes

Monitoring range

Switch point IO-Link [mm]	0.8...3.88
Measuring range IO-Link [mm]	0.4...4

Accuracy / deviations

Repeatability	< 10 µm

Factory calibration (target: aluminium, 36x36 mm)

Resolution [µm]	5
Temperature drift	± 1,6 µm/K
Linearity deviation	± 10 µm

Application calibration (1-point calibration; target: steel, 36x36 mm)

Resolution [µm]	5
Temperature drift	± 4 µm/K
Linearity deviation	± 75 µm

Application calibration (3-point calibration; target: steel, 24x24 mm)

Resolution [µm]	5
Temperature drift	± 4 µm/K
Linearity deviation	± 50 µm

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9 CDV

Profiles

Smart Sensor: Device Identification; Device Diagnosis; Device Teach Channel; Binary Data Channel; Process Data Variable

SIO mode

yes

Required master port class

Min. process cycle time [ms]

3.2

Supported DeviceIDs

Type of operation	DeviceID
default	1705

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 65; IP 66; IP 67; IP 68; IP 69K

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

Vibration resistance

EN 60068-2-6 Fc

20 g (10...3000 Hz) / 50 sweep cycles per frequency; 1 octave per minute in 3 axes

Shock resistance

EN 60068-2-27 Ea

100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes

Continuous shock resistance

EN 60068-2-27 Eb

40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes

Fast temperature changes

EN 60068-2-14 Na

TA = -25 °C; TB = 70 °C; t1 = 30 min; t2 = < 10 s; 50 cycles

MTTF [years]

1341

Embedded software included

yes

UL approval

Ta	-25...70 °C
Enclosure type	Type 1
voltage supply	Limited Voltage/Current
UL approval number	A005
File number UL	E174191

Mechanical data

Weight [g]	53.9
Housing	Threaded type
Mounting	flush mountable
Dimensions [mm]	M12 x 1 / L = 60
Thread designation	M12 x 1
Material	housing: stainless steel (1.4404 / 316L); sensing face: LCP white; LED window: PEI; lock nuts: stainless steel (1.4404 / 316L)
Tightening torque [Nm]	7
