Ifm | SKU:
IF-IFC278-E

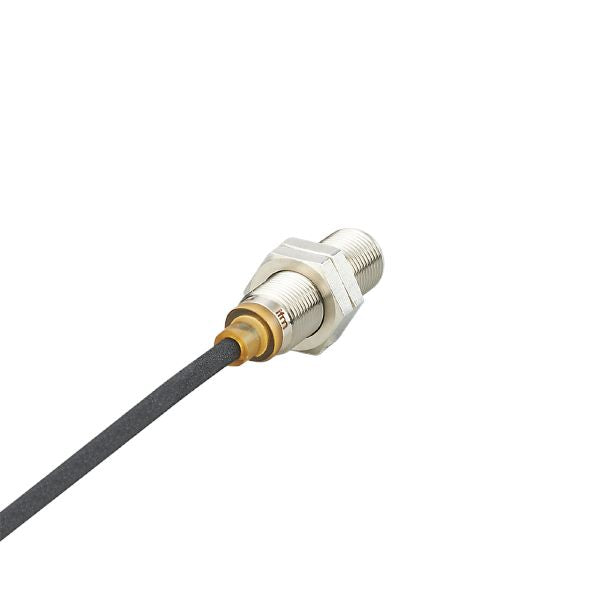

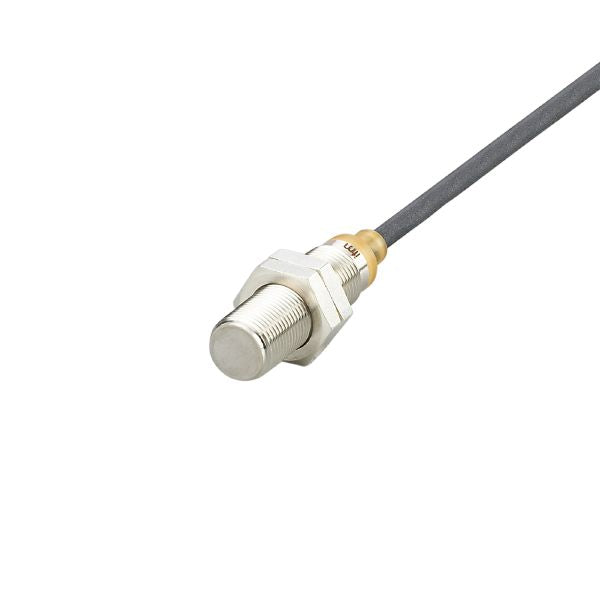

Ifm IFC278 Inductive Full-Metal Sensor
$87.22 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm IFC278 Inductive Full-Metal Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm IFC278 Inductive Full-Metal Sensor
$87.22 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 4 |
| Housing | Threaded type |
| Dimensions [mm] | M12 x 1 / L = 40 |
Application
| System | Drag chain suitability; Increased sensing range; Full-metal housing | |
|---|---|---|
| Application | Oils and coolants | |
| Pressure rating [bar] | 50 | |
| Note on pressure rating |
|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 10 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 100 |
| Short-circuit protection | yes |
| Overload protection | yes |
Monitoring range
| Sensing range [mm] | 4 |
|---|---|
| Real sensing range Sr [mm] | 4 ± 10 % |
| Operating distance [mm] | 0...3.24 |
| Increased sensing range | yes |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.6 / aluminum: 0.5 / copper: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 3...15 |
| Switch-point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 65; IP 66; IP 67; IP 68; IP 69K |
Tests / approvals
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Impact resistance |
|
||||||||||
| Vibration resistance |
|
||||||||||
| Shock resistance |
|
||||||||||
| Continuous shock resistance |
|
||||||||||
| Fast temperature changes |
|
||||||||||
| Salt spray test |
|
||||||||||
| MTTF [years] | 1258 | ||||||||||
| Embedded software included | yes | ||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 74 | ||||
|---|---|---|---|---|---|
| Housing | Threaded type | ||||
| Mounting | flush mountable | ||||
| Dimensions [mm] | M12 x 1 / L = 40 | ||||
| Thread designation | M12 x 1 | ||||
| Material | stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PEI; lock nuts: brass white bronze coated | ||||
| Tightening torque [Nm] | 15 | ||||
| Drag chain suitability | yes | ||||
| Drag chain suitability |
|
||||
| Full-metal housing | yes |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
