Ifm | SKU:
IF-IFC277-E

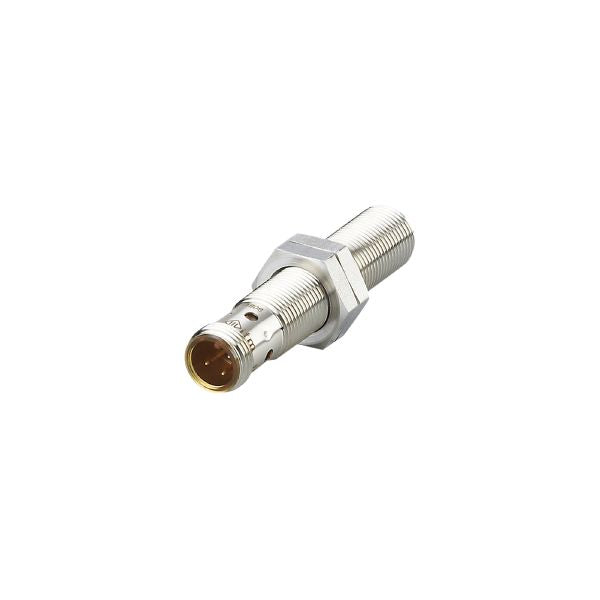

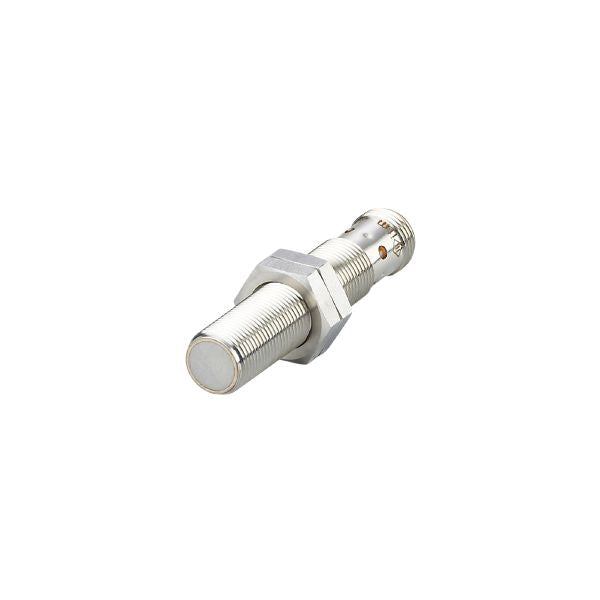

Ifm IFC277 Inductive Full-Metal Sensor
$98.33 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm IFC277 Inductive Full-Metal Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm IFC277 Inductive Full-Metal Sensor
$98.33 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | PNP/NPN; (configurable) |
|---|---|
| Output function | normally open / closed; (configurable) |
| Communication interface | IO-Link |
| Housing | Threaded type |
| Dimensions [mm] | M12 x 1 / L = 60 |
Application
| System | gold-plated contacts | |
|---|---|---|
| Application | Oils and coolants | |
| Pressure rating [bar] | 100 | |
| Note on pressure rating |
|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN; (configurable) |
|---|---|
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 100 |
| Short-circuit protection | yes |
| Overload protection | yes |
Monitoring range
| Switch point IO-Link [mm] | 0.7...3.51; (configurable) |
|---|---|
| Measuring range IO-Link [mm] | 0.375...3.75 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.8 / aluminum: 0.6 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 3...15 |
| Linearity error IO-Link [%] | ± 2; (of the final value of the measuring range) |
| Repeatability IO-Link [%] | ± 1; (of the final value of the measuring range) |
| Temperature coefficient | ± 0,3 %/K; (of the final value of the measuring range) |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Identification and diagnosis; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Teach Channel | ||||
| SIO mode | yes | ||||
| Required master port class | A | ||||
| Min. process cycle time [ms] | 3.2 | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 65; IP 66; IP 67; IP 68; IP 69K |
Tests / approvals
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Impact resistance |
|
||||||||||
| Vibration resistance |
|
||||||||||
| Shock resistance |
|
||||||||||
| Continuous shock resistance |
|
||||||||||
| Fast temperature changes |
|
||||||||||
| Salt spray test |
|
||||||||||
| MTTF [years] | 635 | ||||||||||
| Embedded software included | yes | ||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 29.4 |
|---|---|
| Housing | Threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M12 x 1 / L = 60 |
| Thread designation | M12 x 1 |
| Material | stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PEI; lock nuts: brass white bronze coated |
| Tightening torque [Nm] | 15 |
Displays / operating elements
