Ifm | SKU:
IF-IFC258-E

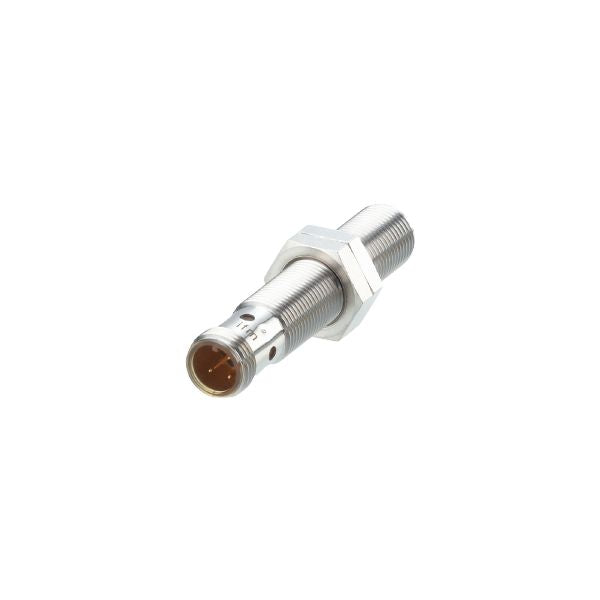

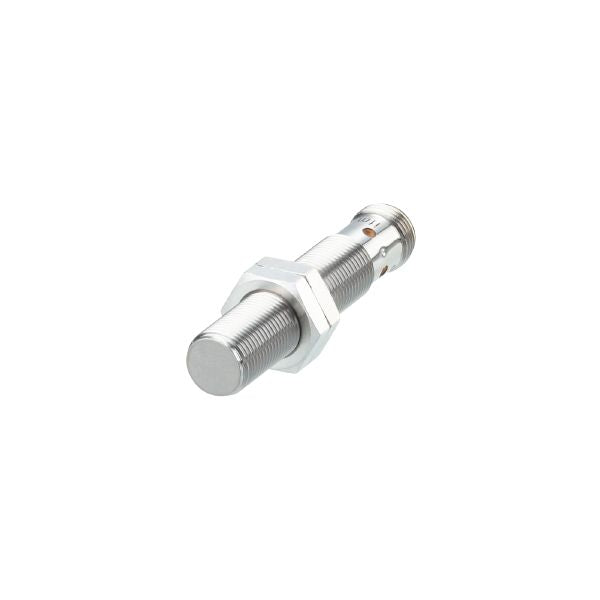

Ifm IFC258 Inductive Full-Metal Sensor
$87.22 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm IFC258 Inductive Full-Metal Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm IFC258 Inductive Full-Metal Sensor
$87.22 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 3 |
| Housing | Threaded type |
| Dimensions [mm] | M12 x 1 / L = 60 |
Application
| System | gold-plated contacts; Full-metal housing | |
|---|---|---|
| Application | Oils and coolants | |
| Pressure rating [bar] | 100 | |
| Note on pressure rating |
|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 20 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 100 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Sensing range [mm] | 3 |
|---|---|
| Operating distance [mm] | 0...2.4 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.6 / brass: 0.7 / aluminum: 0.6 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 1...20 |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 67; IP 68; ("Coolant") |
Tests / approvals
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Impact resistance |
|
||||||||||
| MTTF [years] | 1258 | ||||||||||
| Embedded software included | yes | ||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 28.3 |
|---|---|
| Housing | Threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M12 x 1 / L = 60 |
| Thread designation | M12 x 1 |
| Material | housing: stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PEI; lock nuts: stainless steel (1.4404 / 316L) |
| Tightening torque [Nm] | 15 |
| Full-metal housing | yes |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
