Ifm | SKU: IF-IFC248-E | Barcode: DOES NOT APPLY

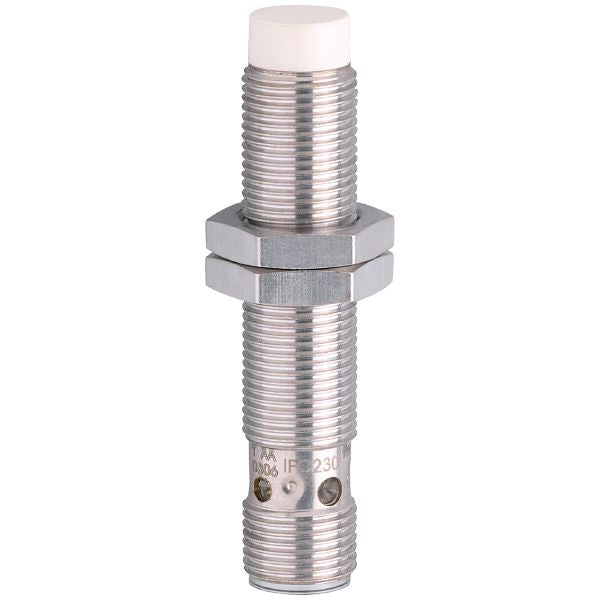

Ifm IFC248 Inductive As-Interface Sensor

Name: Ifm IFC248 Inductive As-Interface Sensor
Availability: BackOrder

$151.11 USD

Shipping calculated at checkout.

Ifm IFC248 Inductive As-Interface Sensor is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Product characteristics

Electrical design	AS-i
Sensing range [mm]	7
Housing	Threaded type
Dimensions [mm]	M12 x 1 / L = 60

Application

System	gold-plated contacts
Application	Oils and coolants

Electrical data

Operating voltage [V]	26.5...31.6 DC
Current consumption [mA]	< 30
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	1000

Outputs

Electrical design	AS-i
Switching frequency DC [Hz]	100

Monitoring range

Sensing range [mm]	7
Real sensing range Sr [mm]	7 ± 10 %
Operating distance [mm]	0...5.7

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.5 / copper: 0.4
Hysteresis [% of Sr]	1...20
Switch-point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 68; ("Coolant")

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

MTTF [years]

1696

UL approval

Ta	-25...70 °C
Enclosure type	Type 1
voltage supply	Limited Voltage/Current
File number UL	E174191

AS-i classification

AS-i version

2.1

Extended addressing mode

yes

AS-i I/O configuration [hex]

AS-i ID code [hex]

A.F

AS-i certificate

57101

Data bits

Description	switching signal	not used	not used	not used
status = 0	target outside the active zone	-	-	-
status = 1	target within the active zone	default value	default value	default value

Mechanical data

Weight [g]	32.8
Housing	Threaded type
Mounting	non-flush mountable
Dimensions [mm]	M12 x 1 / L = 60
Thread designation	M12 x 1
Material	stainless steel (1.4404 / 316L); sensing face: LCP uncolored

Displays / operating elements

Display

Switching status	4 x 90° LED, yellow
Function	1 x LED, red

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
