Ifm  |  SKU: IF-I7R213-E  |  Barcode: DOES NOT APPLY

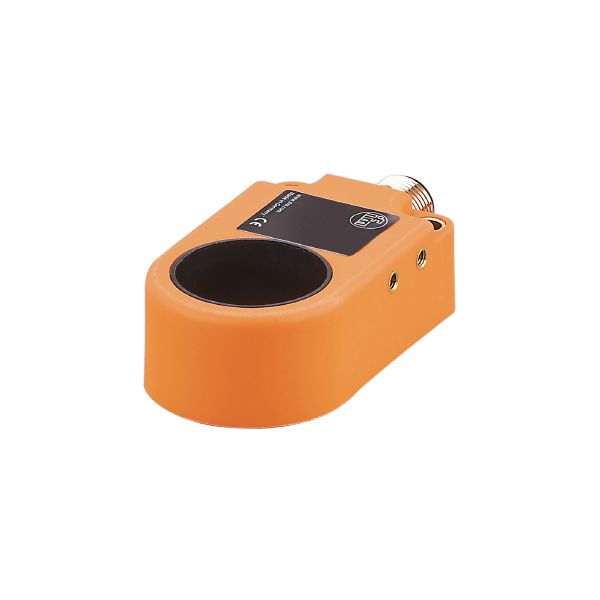

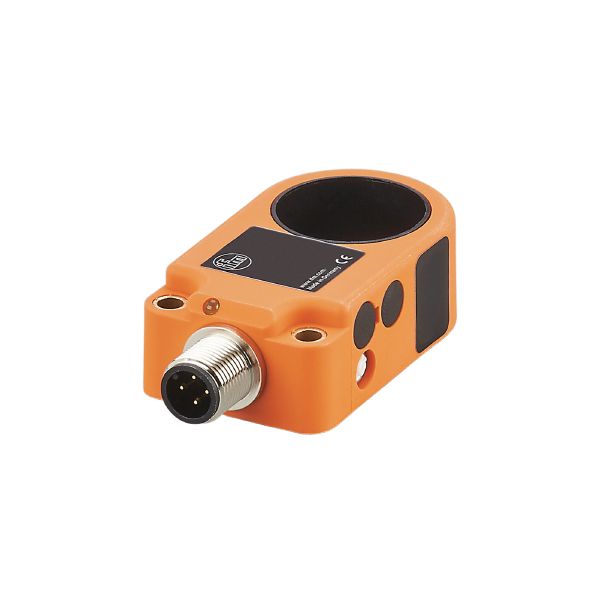

Ifm I7R213 Inductive Ring Sensor

$258.89 USD
Shipping calculated at checkout.

Ifm I7R213 Inductive Ring Sensor is backordered and will ship as soon as it is back in stock.


Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Sign up for exclusive offers.

Product characteristics
Electrical design PNP
Output function normally open / closed; (selectable)
Housing circular
Dimensions [mm] 60 x 35 x 20
Application
Principle of operation static
Electrical data
Operating voltage [V] 10...35 DC
Current consumption [mA] < 11
Protection class III
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function normally open / closed; (selectable)
Max. voltage drop switching output DC [V] 2
Permanent current rating of switching output DC [mA] 200
Short-circuit protection yes
Overload protection yes
Monitoring range
Resolution of steel ball (diameter) [mm] 3
Max. part speed [m/s] 35
Reaction times
Pulse stretching [ms] 10...150
Pulse stretching adjustable yes
Max. fall time [ms] 10
Response time [ms] < 0.5
Operating conditions
Ambient temperature [°C] -25...70
Max. relative air humidity [%] 50; (Ambient temperature 70 °C)
Protection IP 67
Tests / approvals
MTTF [years] 646
UL approval
Ta -25...70 °C
Enclosure type Type 4X (indoor use only) / 12 and 13
voltage supply Class 2
File number UL E174191
Mechanical data
Weight [g] 54
Housing circular
Dimensions [mm] 60 x 35 x 20
Inside diameter [mm] 25.1
Material housing: PA; ring: POM
Displays / operating elements
Display
Switching status 1 x LED, yellow
Remarks
Pack quantity 1 pcs.
Electrical connection - plug
Connection Connector: 1 x M12; coding: A
