Ifm | SKU:
IF-GM504S-E

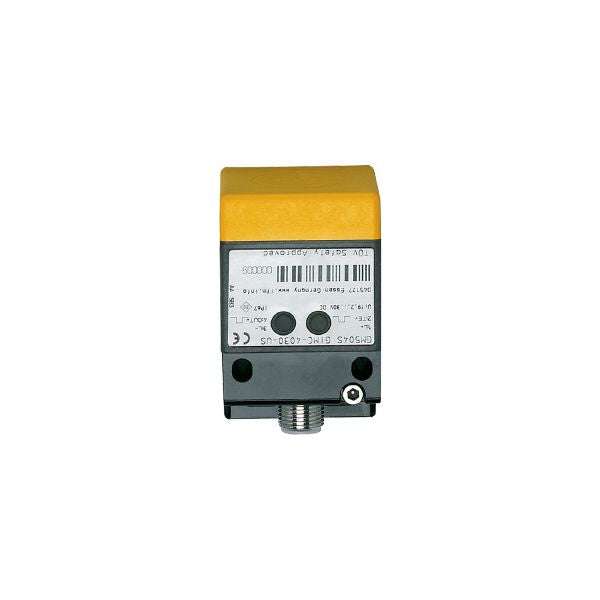

Ifm GM504S Fail-Safe Inductive Sensor
$316.11 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm GM504S Fail-Safe Inductive Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm GM504S Fail-Safe Inductive Sensor
$316.11 USD
Unit price
/
Unavailable
Product characteristics
| Output function | Clock signal |
|---|---|
| Enable zone [mm] | 10...15 |
| Housing | rectangular |
| Dimensions [mm] | 40 x 40 x 66 |
Application
| System | gold-plated contacts |
|---|---|
| Type of operation | continuous operation (maintenance-free) |
| Safety-related function | safe state when undamped |
| Application | Industrial applications |
Electrical data
| Operating voltage [V] | 19.2...30 DC |
|---|---|
| Rated insulation voltage [V] | 30 |
| Current consumption [mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 5000 |
Inputs
| Max. input capacitance Ci_max [nF] | 2 |
|---|
Outputs
| Output function | Clock signal |
|---|---|
| Output data | Interface type B |
| Short-circuit protection | yes |
| Max. capacitive load CL_max [nF] | 20 |
Monitoring range
| Enable zone [mm] | 10...15 |
|---|---|
| Safe switching-off distance s(ar) [mm] | 30 |
Reaction times
| Response time to safety request [ms] | 20 |
|---|---|
| Response time when approaching the enable zone [ms] | 200; (typical 100) |
Operating conditions
| Applications | Class C to EN 60654-1 weatherproof application | |
|---|---|---|
| Ambient temperature [°C] | -25...70 | |
| Note on ambient temperature |
|
|
| Ambient temperature [°C] | 10...40 | |
| Note on ambient temperature |
|
|
| Rate of temperature change [K/min] | 0.5 | |
| Max. relative air humidity [%] | briefly: 5...95 %; permanent: 5...70 % | |
| Air pressure [kPa] | 80...106 | |
| Ionizing radiation | not permissible | |
| Salt spray | no | |
| Protection | IP 65; IP 67; (to EN 60529) |
Tests / approvals
| EMC |
|
||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||||||||||||
| Vibration resistance |
|
Safety classification
| Complies with the requirements |
|
||
|---|---|---|---|
| MIssion time TM [h] | ≤ 175200 | ||
| Mission time TM (additional indication) |
|
||
| PFH [1/h] | 1E-08 |
Mechanical data
| Weight [g] | 358 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions [mm] | 40 x 40 x 66 |
| Material | PPE; diecast zinc |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
|
||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
