Ifm | SKU:
IF-EVF532-E

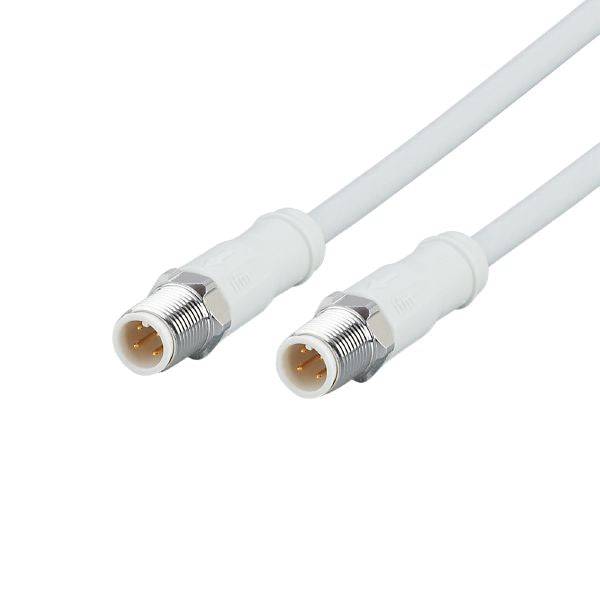

Ifm EVF532 Ethernet Connection Cable
$65.00 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm EVF532 Ethernet Connection Cable is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm EVF532 Ethernet Connection Cable
$65.00 USD
Unit price
/
Unavailable
Application
| System | Free from silicone; Halogen-free; gold-plated contacts; screened cable; Drag chain suitability |
|---|---|
| Design | Ethernet cable, D-coded |
| Application | Industrial Ethernet; CAT5/CAT5e; 100 Mbit/s; sanitary and wet areas in the food industry |
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | 30 AC / 60 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 4 |
| Overall current rating (UL) [A] | 1.66 |
Operating conditions
| Ambient temperature [°C] | -25...100 | |
|---|---|---|
| Note on ambient temperature |
|
|
| Ambient temperature (moving) [°C] | 0...80 | |
| Note on ambient temperature (moving) |
|
|
| Storage temperature [°C] | -25...55 | |
| Storage humidity [%] | 10...100 | |
| Other climatic conditions for storage according to stated class |
|
|
| Protection | IP 65; IP 67; IP 68; IP 69K |
Mechanical data
| Weight [g] | 358 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Dimensions [mm] | 15.5 x 15.5 x 51.5 | ||||||||
| Material | PP Halogen-free | ||||||||
| Molded-body material | PP | ||||||||
| Material nut | stainless steel (1.4404 / 316L) | ||||||||
| Drag chain suitability | yes | ||||||||
| Drag chain suitability |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M12, straight; coding: D; Moulded body: PP; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Shielded connection cable: shield connected |
Electrical connection
| Connection | Cable: 5 m, MPPE, Halogen-free, grey, Ø 6.5 mm, screened; PROFINET Type C; 4 x 0.34 mm² (7 x Ø 0.25 mm ) |
|---|
Electrical connection - plug
| Connector: 1 x M12, straight; coding: D; Moulded body: PP; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Shielded connection cable: shield connected |
