Ifm | SKU:
IF-EC2060-E

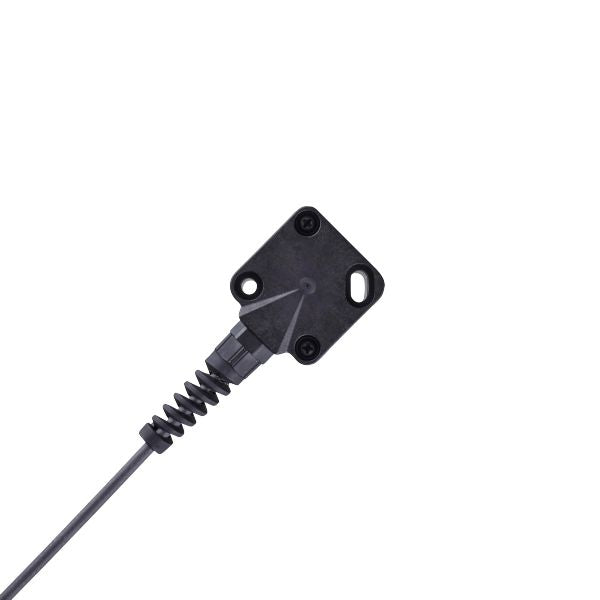

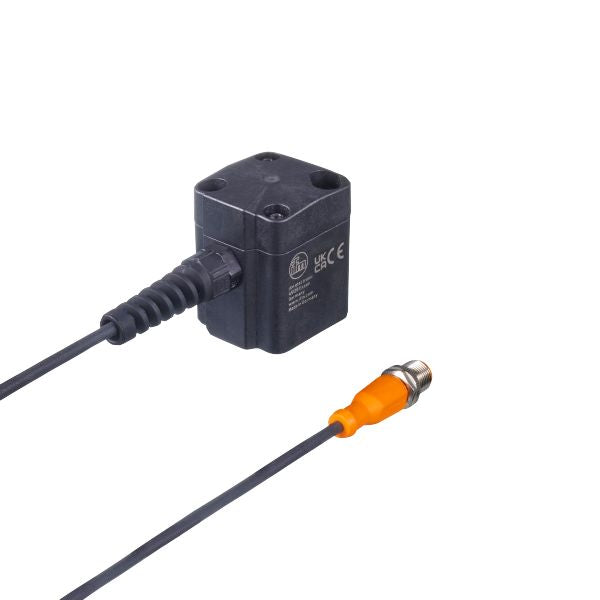

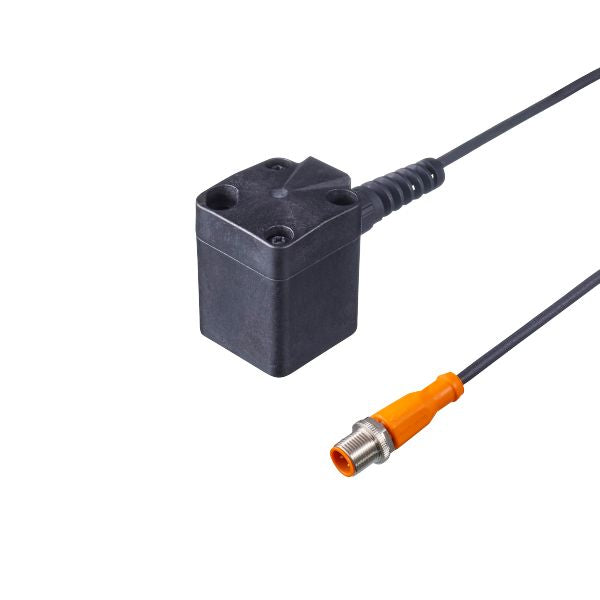

Ifm EC2060 Inclination Sensor
$316.11 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm EC2060 Inclination Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm EC2060 Inclination Sensor
$316.11 USD
Unit price
/
Unavailable
Product characteristics
| Number of measurement axes | 1 |
|---|---|
| Angular range [°] | ± 20 |
Application
| Function principle | static |
|---|---|
| Application | Industrial applications; Mobile applications |
Electrical data
| Operating voltage [V] | 11...15 DC |
|---|---|
| Current consumption [mA] | < 35 |
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analog outputs: 1 |
|---|
Outputs
| Output signal | analog signal; (see characteristics) |
|---|---|
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20 |
| Max. load [Ω] | 400 |
| Overload protection | yes |
Measuring/setting range
| Number of measurement axes | 1 |
|---|---|
| Angular range [°] | ± 20 |
Accuracy / deviations
| Repeatability [°] | 0,1 |
|---|
Operating conditions
| Ambient temperature [°C] | -30...85 |
|---|---|
| Storage temperature [°C] | -30...85 |
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||||||
| Vibration resistance |
|
||||||||||
| MTTF [years] | 755 |
Mechanical data
| Weight [g] | 189.9 |
|---|---|
| Dimensions [mm] | 40.5 x 40.5 x 52.2 |
| Material | housing: PPO |
| Tightening torque [Nm] | 1.8 |
| Mounting orientation | vertical |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 0.2 m | |
| Connector: 1 x M12; coding: A |
Diagrams and graphs
|
measuring and installation direction
|
|
|---|
