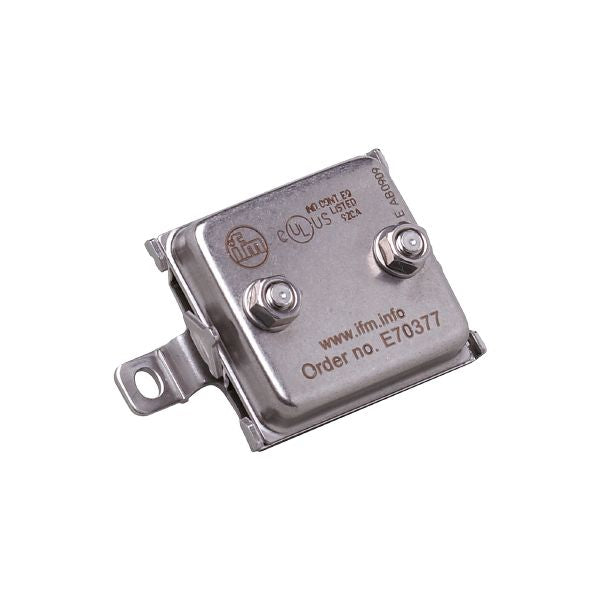

Ifm E7377A As-Interface Flat Cable Splitter

Name: Ifm E7377A As-Interface Flat Cable Splitter
Availability: BackOrder

SKU IF-E7377A-E

$78.89 USD - $78.89 USD

$78.89 USD

$78.89 USD - $78.89 USD

$78.89 USD

Availability:

0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Application

Application	for the distribution of the AS-i voltage or the external 24 V supply

Electrical data

Protection class	III
Max. current load total [A]	8

Outputs

Electrical design	AS-i

Operating conditions

Ambient temperature [°C]

0...60

Note on ambient temperature

-15...60 °C: only in connection with an EPDM cable

Max. relative air humidity [%]

80; (31 °C; linearly decreasing to 50 % (40 °C))

Max. height above sea level [m]

2000

Protection

IP 67; (when used outside the hazardous area: IP 68 / IP 69K)

Degree of soiling

Tests / approvals

ATEX marking	II 3G Ex ec IIC T6 Gc X
	II 3D Ex tc IIIC T 70°C Dc X

Mechanical data

Weight [g]	132.5
Material	metal parts: stainless steel (1.4404 / 316L); rubber gasket for contact pins: FKM; sealing: EPDM
Tightening torque [Nm]	2.5; (Mounting screw)

Accessories

Accessories (optional)

Torque wrench:, E70390

Flat cable blank:, E70299

Remarks

Pack quantity	1 pcs.
