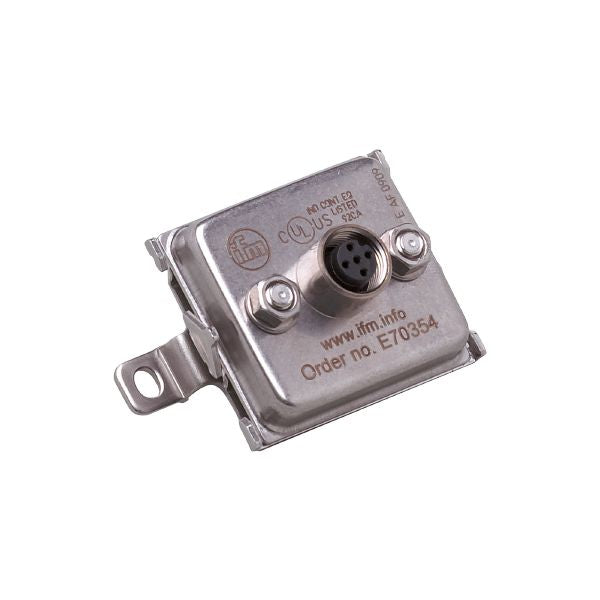

Ifm E70354 As-Interface Flat Cable Insulation Displacement Connector

Name: Ifm E70354 As-Interface Flat Cable Insulation Displacement Connector
Availability: BackOrder

SKU IF-E70354-E

$70.00 USD - $70.00 USD

$70.00 USD

$70.00 USD - $70.00 USD

$70.00 USD

Availability:

0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Application

Design	AS-i / 24 V

Electrical data

Operating voltage [V]	26.5...31.6 DC; (AS-i)
Protection class	III
Operating voltage AUX DC [V]	18...32
Max. current load total [A]	4; (AS-i: 2 A; AUX: 2 A)

Operating conditions

Ambient temperature [°C]	-30...80
Max. relative air humidity [%]	80; (31 °C; linearly decreasing to 50 % (40 °C))
Max. height above sea level [m]	2000
Protection	IP 67; IP 68; IP 69K
Degree of soiling	2

Tests / approvals

EMC

EN 61000-6-2

Mechanical data

Weight [g]	112.3
Material	metal parts: stainless steel (1.4404 / 316L); rubber gasket for contact pins: FPM; O-ring: EPDM
Tightening torque [Nm]	2.5; (lock nuts)

Accessories

Accessories (optional)

Torque wrench, E70390

Remarks

Pack quantity	1 pcs.

Electrical connection - Socket

Connection	Connector: 1 x M12; coding: A; Tightening torque: 1.2...1.4 Nm
