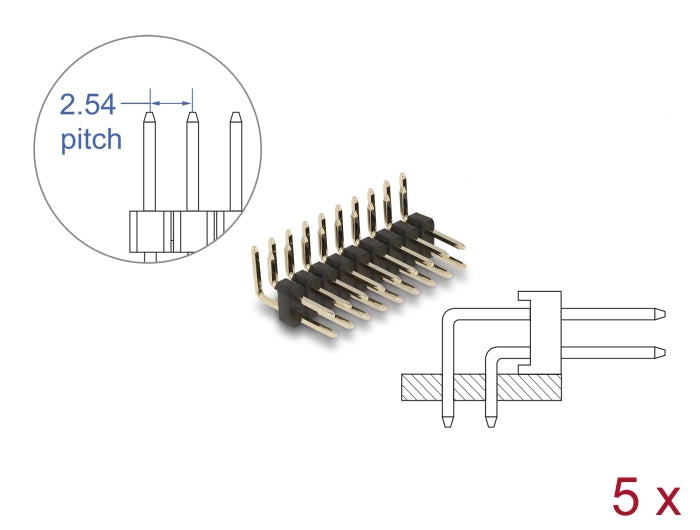

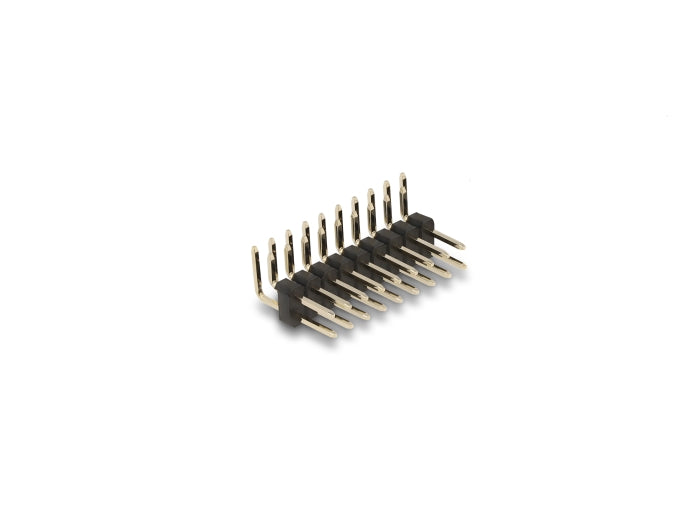

Delock 66701 Pin Header 10 Pin, Pitch 2.54 Mm, 2-Row, Angled, 5 Pieces
$2.07 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Delock 66701 Pin Header 10 Pin, Pitch 2.54 Mm, 2-Row, Angled, 5 Pieces is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Delock 66701 Pin Header 10 Pin, Pitch 2.54 Mm, 2-Row, Angled, 5 Pieces
$2.07 USD
Unit price
/
Unavailable
• Number of pins: 20
• Pitch: 2.54 mm
• Contact resistance: 20 mΩ
• Isolation resistance: 1000 MΩ / min.
• Withstanding voltage: 500 V AC / DC
• Operating temperature: -40 °C ~ 105 °C
• Processing temperature: 230 °C (30 - 60 seconds)
• Contacts gold-plated
• Material of header: polyester UL 94V-0
• Colour: black
• Dimensions (LxWxH): ca. 25.4 x 12.9 x 5.0 mm
• Pitch: 2.54 mm
• Contact resistance: 20 mΩ
• Isolation resistance: 1000 MΩ / min.
• Withstanding voltage: 500 V AC / DC
• Operating temperature: -40 °C ~ 105 °C
• Processing temperature: 230 °C (30 - 60 seconds)
• Contacts gold-plated
• Material of header: polyester UL 94V-0
• Colour: black
• Dimensions (LxWxH): ca. 25.4 x 12.9 x 5.0 mm
