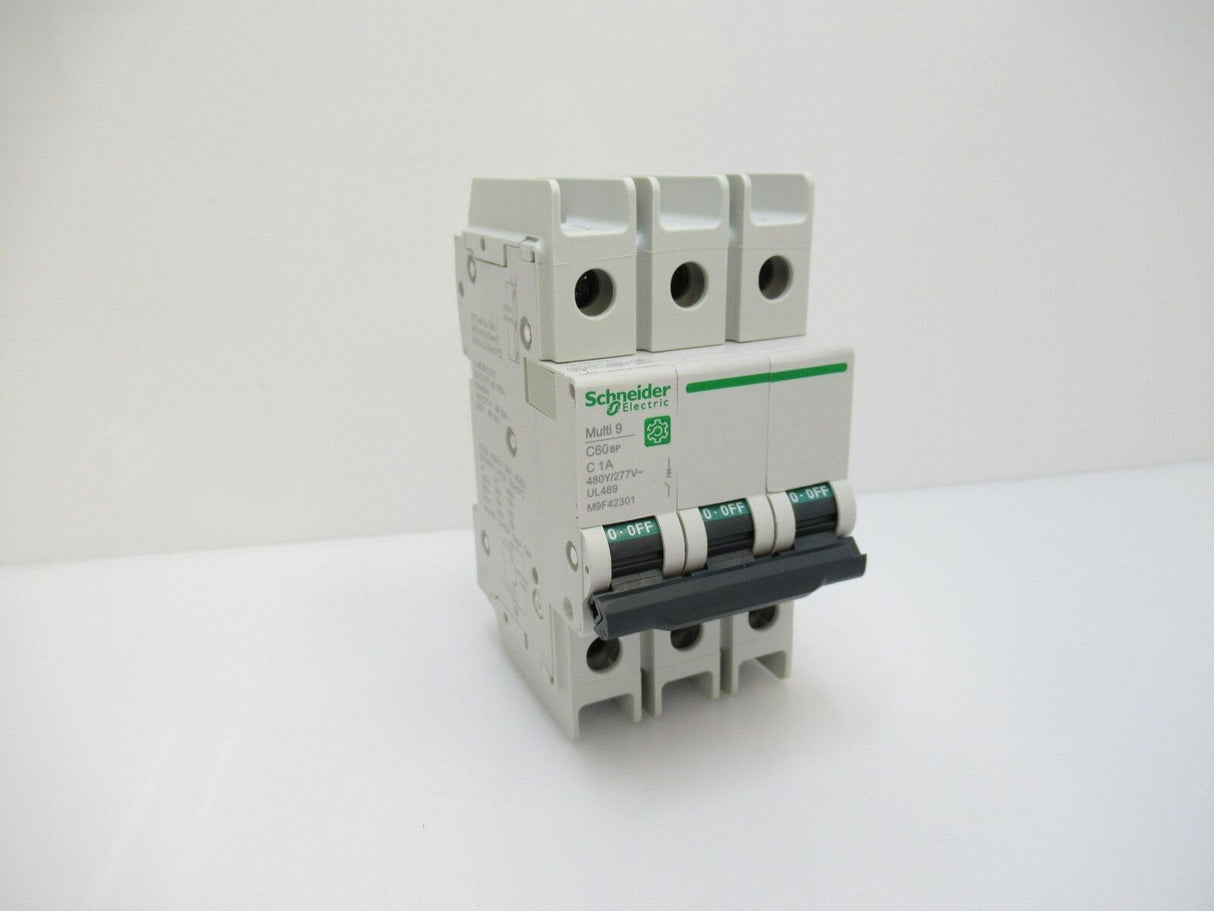

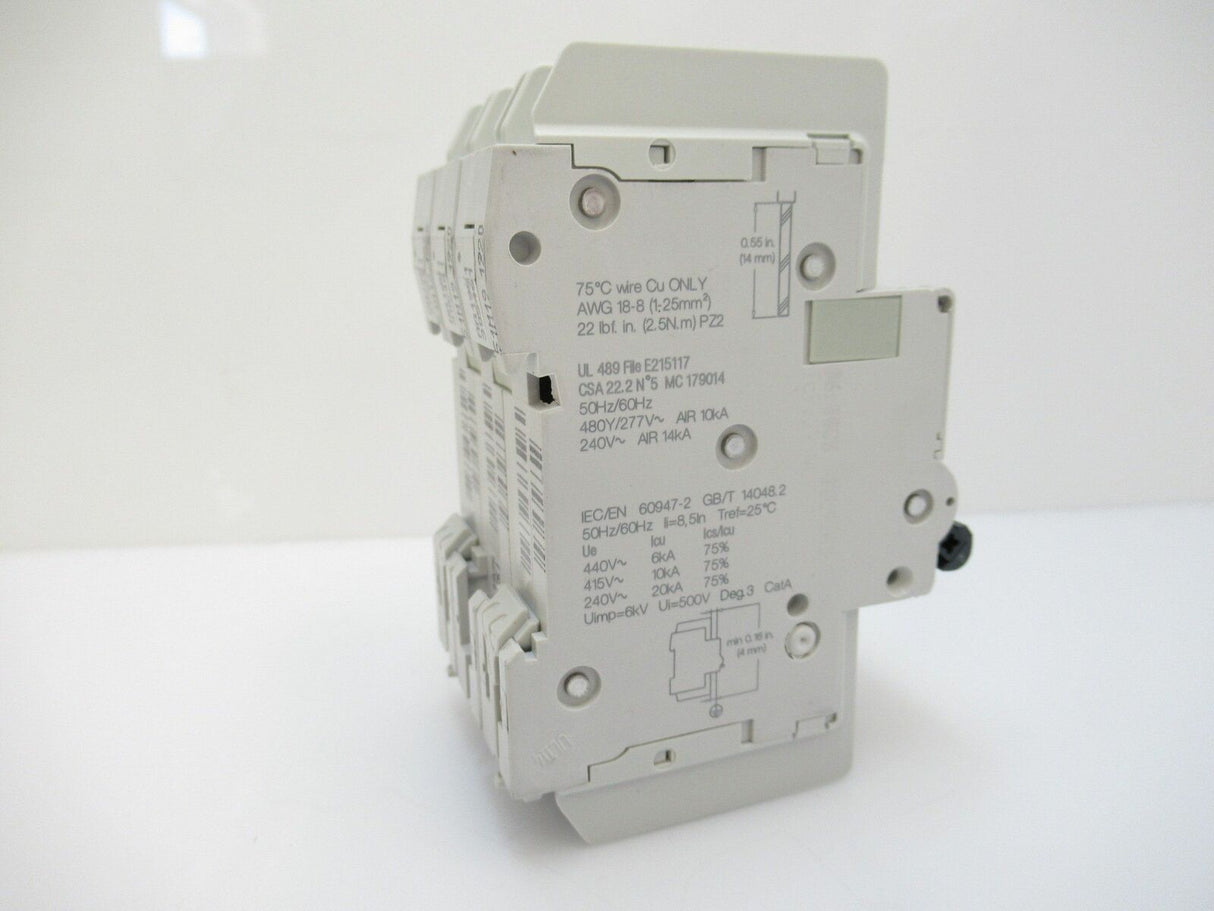

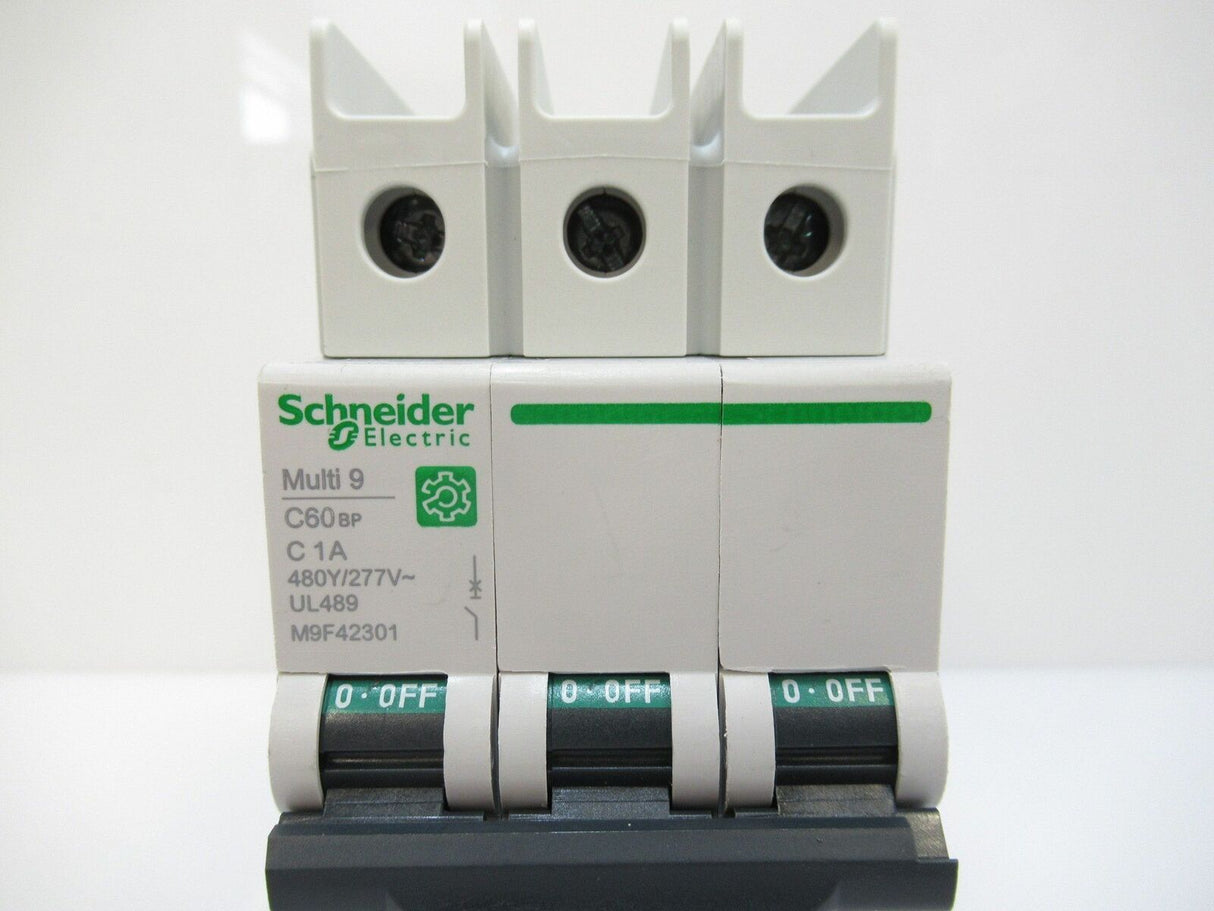

Schneider Electric M9F42301 Circuit-Breaker Multi 9 3-Poles 1A Curve C

Description:

• Main Range: Multi9
• Product Name: Multi9 C60
• Product or Component Type: Miniature Circuit-Breaker
• Device Short Name: C60BP
• Device Application: Distribution
• Poles Description: 3P (Three Poles)
• Number of Protected Poles: 3
• Rated Current [In]: 1 A at 77 °F (25 °C) according to EN/IEC 60947-2
• Network Type: AC (Alternating Current)
• Trip Unit Technology: Thermal-magnetic
• Curve Code: C
• Breaking Capacity:
  • 6 kA Icu at 440 V AC according to EN/IEC 60947-2
  • 10 kA Icu at 415 V AC according to EN/IEC 60947-2
  • 20 kA Icu at 240 V AC according to EN/IEC 60947-2
  • Additional ratings per GB 14048.2, UL 489, and CSA C22.2 No 5 standards
• Suitability for Isolation: Yes according to EN/IEC 60947-2
• Standards: EN/IEC 60947-2, GB 14048.2, UL 489, CSA C22.2 No 5
• Product Certifications: IEC, CCC, CSA, UL
• Complementary:
  • Rated Operational Voltage [Ue]: 240 V AC, 415 V AC, 440 V AC at 50/60 Hz
  • Magnetic Tripping Limit: 8.5 x In +/- 20 % AC
  • Rated Service Breaking Capacity [Ics]: Various ratings at different voltages and standards
  • Rated Insulation Voltage [Ui]: 500 V AC according to EN/IEC 60947-2
  • Rated Impulse Withstand Voltage [Uimp]: 6 kV according to EN/IEC 60947-2
  • Contact Position Indicator: Yes
  • Control Type: Toggle
  • Local Signalling: ON/OFF indication
  • Mounting Mode: Clip-on
  • Mounting Support: DIN rail with 9 mm pitches
  • Dimensions:
    • Height: 4.06 in (103 mm)
    • Width: 2.1 in (54 mm)
    • Depth: 2.8 in (72 mm)
  • Colour: Grey
  • Mechanical Durability: 20,000 cycles
  • Electrical Durability: 10,000 cycles
  • Provision for Padlocking: Padlockable

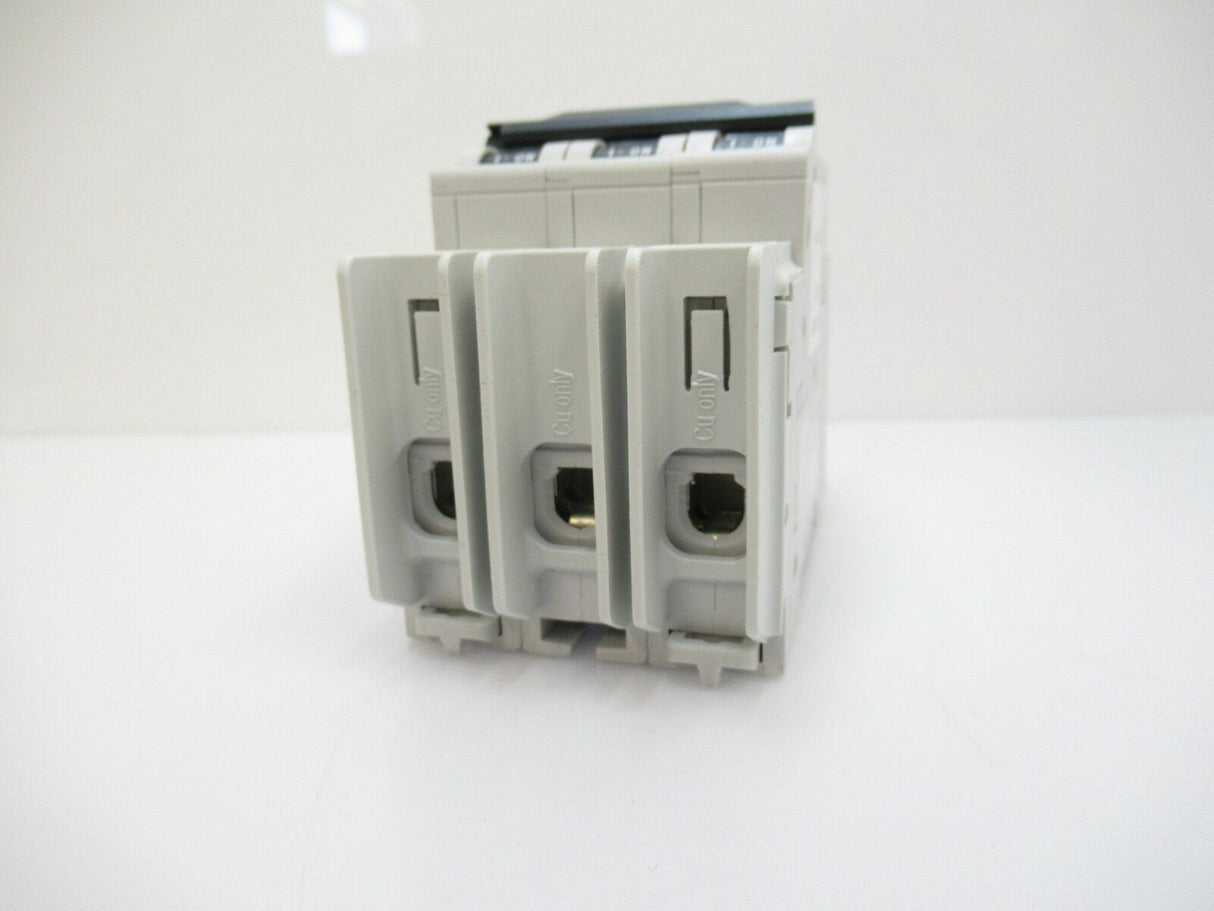

  • Connections - Terminals: Tunnel type terminals for various wire sizes and types
  • Wire Stripping Length: 0.6 in (14 mm) for top or bottom connections
  • Tightening Torque: 22.1 lbf.in (2.5 N.m) for top or bottom connections
  • Earth-Leakage Protection: Without
  • Environment:
    • IP Degree of Protection: IP20 and IP40 (for modular enclosure) conforming to IEC 60529
    • Pollution Degree: 3 according to EN/IEC 60947-2
    • Tropicalisation: 2 according to IEC 60068-1
    • Relative Humidity: 95% at 131 °F (55 °C)
    • Operating Altitude: 0 to 2000 m
    • Ambient Air Temperature:
      • For Operation: -22…158 °F (-30…70 °C)
      • For Storage: -40…176 °F (-40…80 °C)
