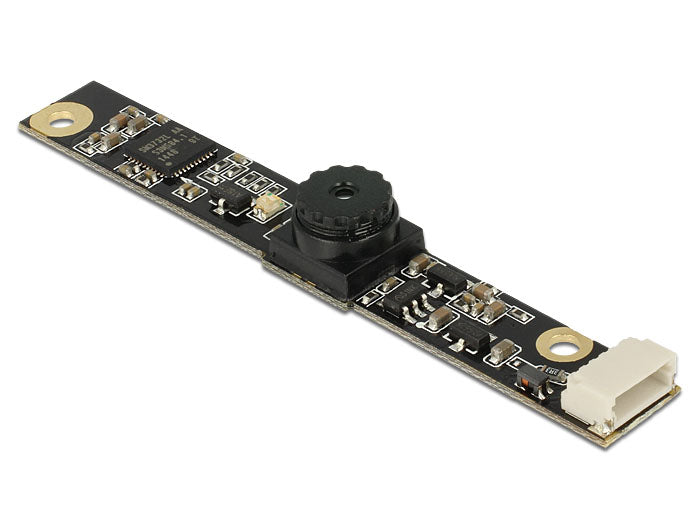

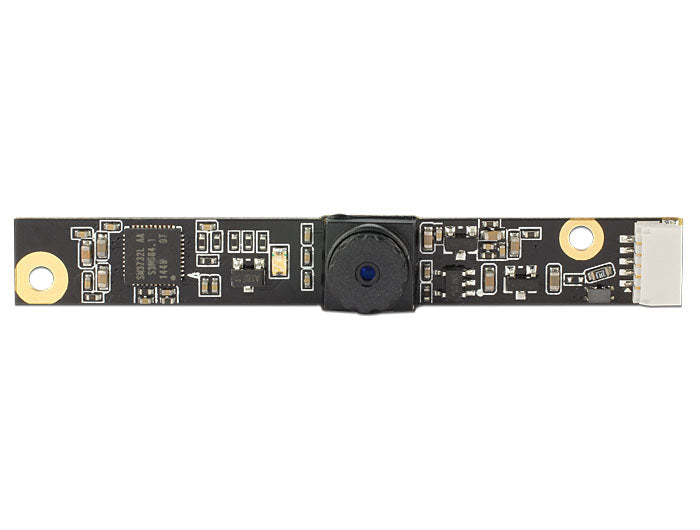

Delock 95976 Usb 2.0 Camera Module 3.14 Mega Pixel 48° V5 Fix Focus

• Connector: USB 2.0 5 pin jack SMT, 1 mm pitch
• Resolution: 3.14 Mega Pixel
• With optical IR filter
• Standard SCCB interface (I²C Bus)
• Output support for RAW RGB, RGB565/555/444, CCIR656,
YUV422/420, YCbCr422 and compression
• Maximum resolution: QXGA (2048 x 1536)
• Automatic image control functions including
- Automatic exposure control (AEC)
- Automatic white balance (AWB)
- Automatic band filter (ABF)
- Automatic black-level calibration (ABLC)
• Image quality controls including colour saturation, gamma,
sharpness (edge enhancement), lens correction, white pixel canceling,
noise canceling, and automatic 50/60 Hz luminance detection
• Supports scaling
• Power consumption:
Sensor suspend: 90 mA
Sensor active: 430 mA ± 5 mA @ 640 x 480 pixel
• Operating voltage: 5 V DC
• Operating temperature: 5 °C ~ 50 °C
• Relative humidity during operation: max. 80 %
• Sensor size: 1/4 inch
• Sensitivity: 0.6 V (lx s)
• Signal to noise ratio: 36 dB
• Dynamic range: 68 dB
• Fix focus: 0.3 m ~ infinite
• Lens: F/2.8
• Frame rates:
30 fps @ HVGA, VGA, XGA, 720p, QVGA
15 fps @ UXGA, 1080p, QXGA

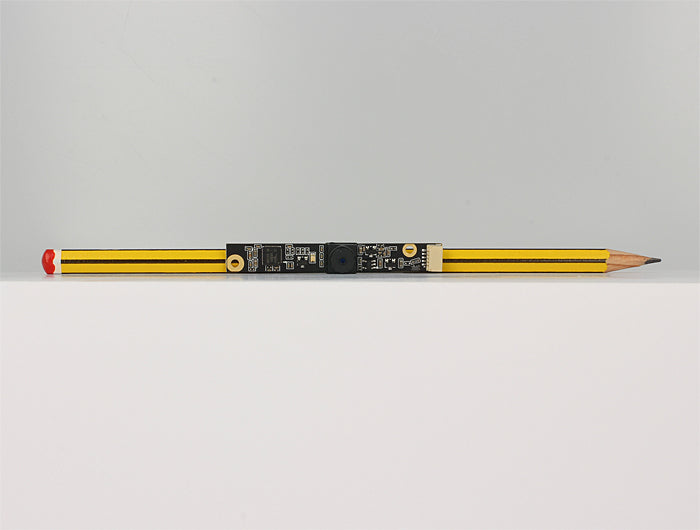

• Dimension (LxWxH): ca. 60 x 8 x 6.3 mm
