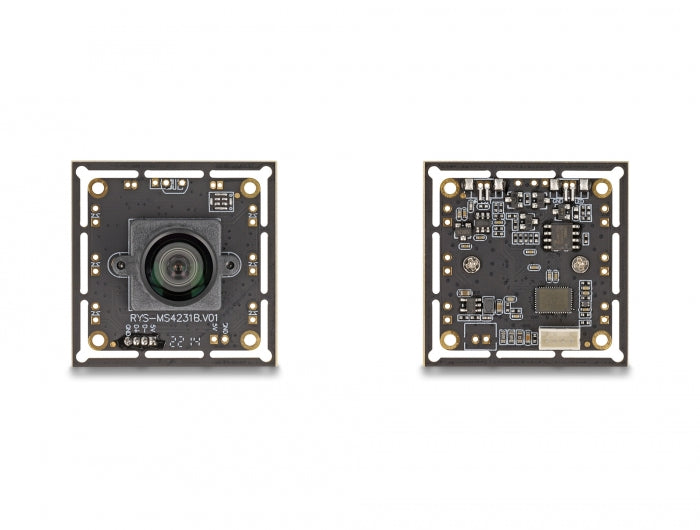

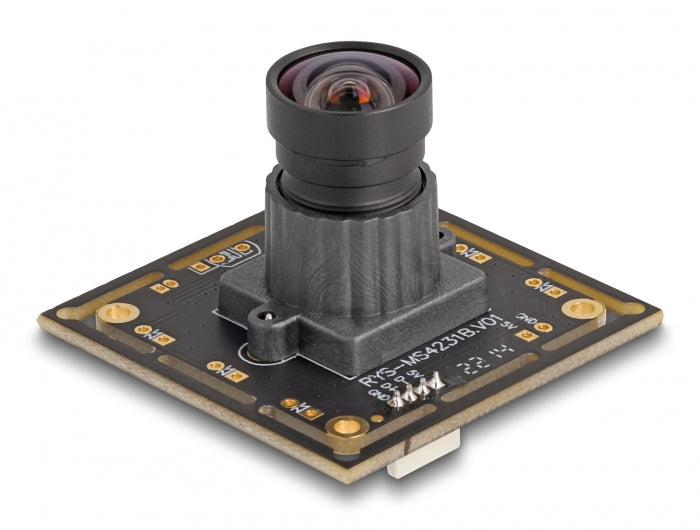

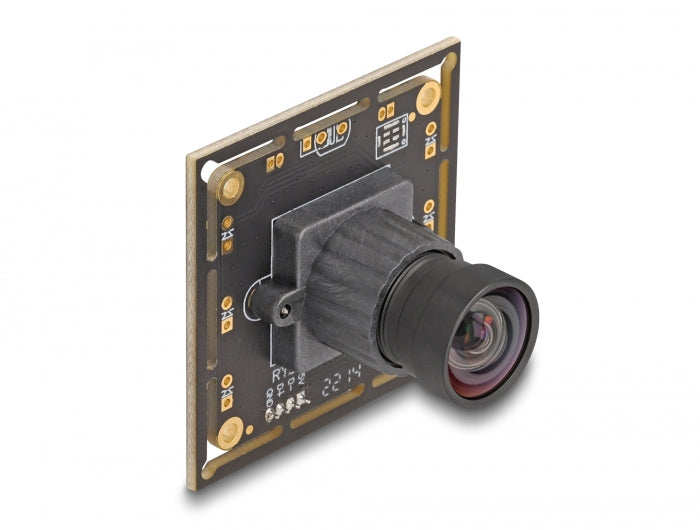

Delock 12069 Usb 2.0 Camera Module With Hdr 2.1 Mega Pixel 84° V6 Fix Focus

• Connector: 1 x 4 pin USB 2.0 pin header female SMT, pitch 1.5 mm
• Resolution: 2.1 megapixel
• Sensor: PS4231
• With optical IR filter
• Maximum resolution: 1080p @ 30 fps (1920 x 1080)
• Image sensor processor functions:
Automatic black-level calibration (ABLC)
Embedded Local Tone Mapping
Black sun cancellation by CMOS sensors
• Current consumption: ca. 100 mA
• Operating voltage: 5 V DC
• Operating temperature: -10 °C ~ 70 °C
• Operating humidity: ≤ 80 %
• Sensor size: 1/2.7"
• Sensitivity: 5.8 V / lx s
• Signal-to-noise ratio (SNR): ca. 41 dB
• Dynamic range: 85 dB
• Fix focus: 0.3 m - infinite
• Aperture: F/3.2
• Lens thread: M12
• Frame rates: all resolutions MJPG 30 fps
• Dimensions (LxWxH): ca. 38.0 x 38.0 x 22.3 mm
